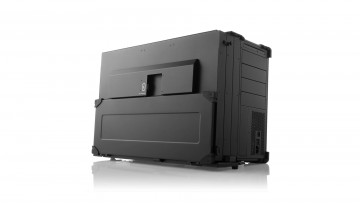

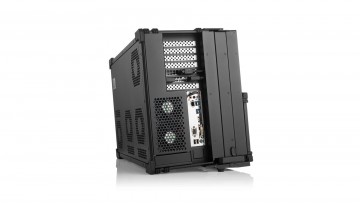

MegaPAC L3

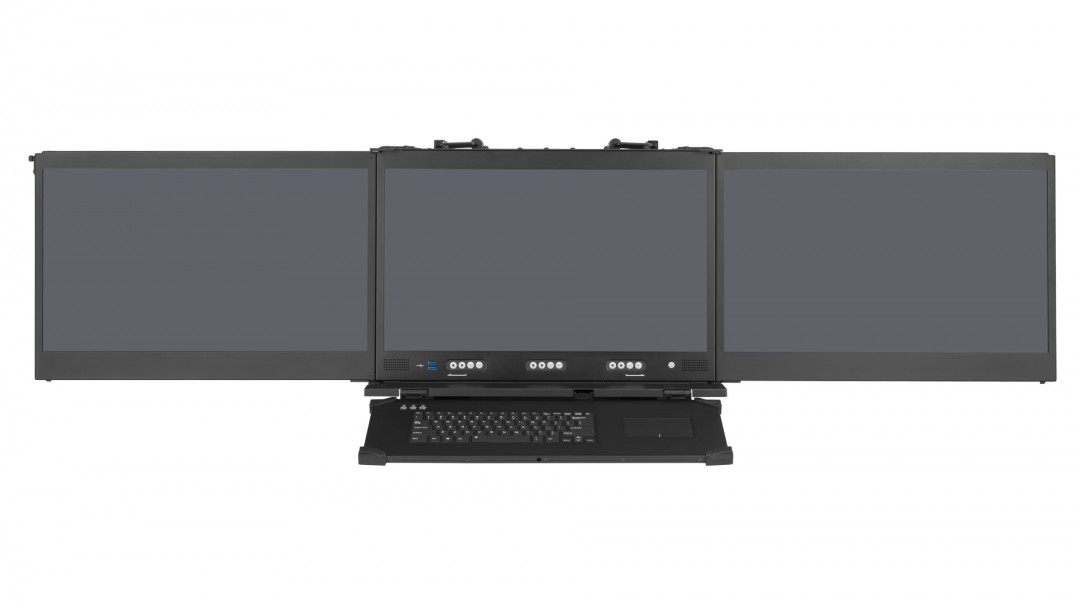

Triple 24" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications.

The ML3, a triple display accessory, can also be attached to the MegaPAC L3 system for a total of 6 displays.

Download Datasheet

Triple Large Display High Performance Rugged Portable

The FlexPAC III is a classic system at Acme Portable. With its power and displays, it was a popular mobile command control center used in emergency situations, simulations, and more. Nevertheless, there has been an increasing demand for a stronger system. As a result, now equipped with ultra HD resolutions, we have created the MegaPAC L3!

The MegaPAC L3 takes all the popular aspects of the FlexPAC III and makes it even bigger and better.

Technical Specifications

Product	MegaPAC L3
Display	Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
CPU	Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory	Up to 1TB DDR4 RAM
Graphics Card	Integrated HD graphic controller or application-specific graphic controller
Expansion Slots	Up to 7
Storage	Up to 150TB (Removable Option Available)
Power Supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply
Dimensions	Height: 16.39" (416mm), Width: 22.96" (583mm), Depth: 11.98" (304mm)
Weight	52.82 lbs (24kg)
Touch Option	Touchscreen Optional
WiFi / Bluetooth	WiFi and Bluetooth Optional
RAID	RAID 0/1/5/10
Keyboard & Mouse	105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case	Includes Padded Rolling Transit Case Optional :Hardened Case Available
Quality	ISO 9001
Customization	Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product	MegaPAC L3	MegaPAC L2	FlexPAC L3
Display	Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)	Dual 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), or Dual 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), or Dual 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)	Triple 17.3" or 18.5" Full HD 1920x1080
CPU	Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™	Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™	Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory	Up to 1TB DDR4 RAM	Up to 1TB DDR4 RAM	Up to 1TB DDR4 RAM
Graphics Card	Integrated HD graphic controller or application-specific graphic controller	Integrated HD graphic controller or application specific graphic controller	Integrated HD graphic controller or application specific graphic controller
Expansion Slots	Up to 7	Up to 7	Up to 7
Storage	Up to 150TB (Removable Option Available)	Up to 150TB (Removable Option Available)	Up to 36TB (Removable Option Available)
Power Supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Dimensions	Height: 16.39" (416mm), Width: 22.96" (583mm), Depth: 11.98" (304mm)	Height: 16.31" (414mm) Width: 24.58" (624mm) Depth: 10.56" (268mm)	Folded: Height: 14.5" (368mm) Width: 17.125" (435mm) Depth: 11.75" (298.5mm) Deployed: Height: 14.5" (368mm) Width: 43.0" (1092mm) Depth: 11.75" (298.5mm)
Weight	52.82 lbs (24kg)	~45 lbs (20kg)	~47 lbs (21.3kg)
