MegaPAC Family

Hi-Res, 24" Workstations.

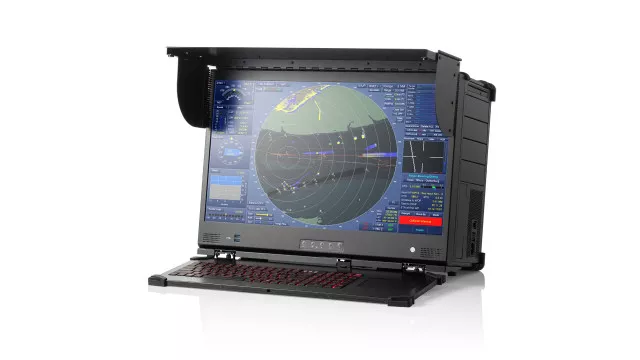

24" UHD Display integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

MegaPAC L1

Learn more

Dual 24" HD Displays in an up-down design integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

MegaPAC L2

Learn more

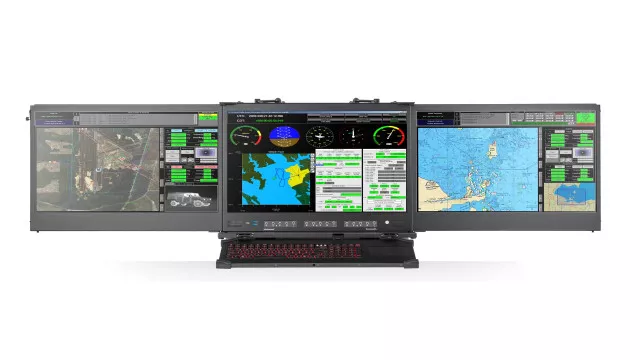

Triple 24" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications. * The MegaPAC L3 can also add an additional 3 displays totaling up to 6 displays by attaching our ML3 as shown in the pictures.

MegaPAC L3

Learn more

MegaPAC Family Technical Specs

MegaPAC L1 Thumbnail MegaPAC L2 Thumbnail MegaPAC L3 Thumbnail

MegaPAC L1

MegaPAC L2

MegaPAC L3

Learn more

Learn more

Learn more

display icon

23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)

display icon for MegaPAC L2

Dual 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
or Dual 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Dual 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)

display icon for MegaPAC L3

Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with toughscreen),
or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)

cpu icon

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

cpu icon for MegaPAC L2

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

cpu icon for MegaPAC L3

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

memory icon

Up to 1TB DDR4 RAM

memory icon for MegaPAC L2

Up to 1TB DDR4 RAM

memory icon for MegaPAC L3

Up to 1TB DDR4 RAM

graphics-card icon

Integrated HD graphic controller
or application-specific graphic controller

graphics-card icon for MegaPAC L2

Integrated HD graphic controller
or application specific graphic controller

graphics-card icon for MegaPAC L3

Integrated HD graphic controller
or application-specific graphic controller

expansion-slots icon

Up to 7

expansion-slots icon for MegaPAC L2

Up to 7

expansion-slots icon for MegaPAC L3

Up to 7

storage icon

Up to 150TB (Removable Option Available)

storage icon for MegaPAC L2

Up to 150TB (Removable Option Available)

storage icon for MegaPAC L3

Up to 150TB (Removable Option Available)

power-supply icon

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply

power-supply icon for MegaPAC L2

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply

power-supply icon for MegaPAC L3

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply

dimensions icon

Height: 15.12" (384mm)
Width: 23.11" (587mm)
Depth: 9.02" (229mm)

dimensions icon for MegaPAC L2

Height: 16.31" (414mm)
Width: 24.58" (624mm)
Depth: 10.56" (268mm)

dimensions icon for MegaPAC L3

Height: 16.39" (416mm),
Width: 22.96" (583mm),
Depth: 11.98" (304mm)

weight icon

~40 lbs (18kg)

weight icon for MegaPAC L2

~45 lbs (20kg)

weight icon for MegaPAC L3

52.82 lbs (24kg)

Have any questions?

Certifications

Cage Code: 4AA27
