FlexPAC Family

Standard industrial workstations.

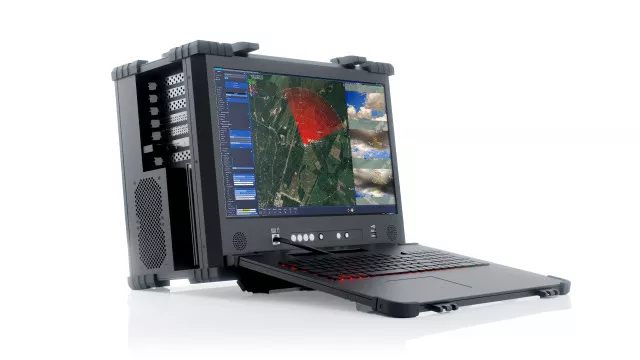

Standard Industrial Portable Workstation

Compact, High Performance, Rugged Portable with a 17.3" display and 7 full-length expansion slots. Configurable with the latest Intel® Core™ or AMD processor.

FlexPAC

Learn more

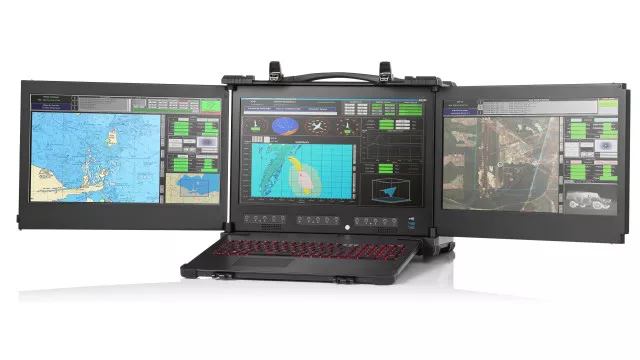

Triple Display Industrial Workstation

Triple 17.3" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications.

FlexPAC III

Learn more

FlexPAC T Main

FlexPAC T

Learn more

FlexPAC Family Technical Specs

FlexPAC Thumbnail

FlexPAC

FlexPAC

Learn more

FlexPAC III Thumbnail

FlexPAC III

FlexPAC III

Learn more

FlexPAC T Thumbnail

FlexPAC T

FlexPAC T

Learn more

17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option

Triple 17.3" Full HD 1920x1080

17.3" FHD 1920x1080 Tiltable Display - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Up to 1TB DDR4 RAM

Up to 1TB DDR4 RAM

Up to 1TB DDR4 RAM

Integrated HD graphic controller
or application-specific graphic controller

Integrated HD graphic controller
or application specific graphic controller

Integrated HD graphic controller
or application-specific graphic controller

Up to 7

Up to 7

Up to 7

Up to 48TB (Removable Option Available)

Up to 36TB (Removable Option Available)

N/A

680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply

Option 1: ATX Right side,
Option 2: ATX Left side – Combined with Low Profile CPU Cooler,
Option 3: 1U Right side

Height: 17.06" (433mm)
Width: 13.67" (347mm)
Depth: 9.02" (229mm)

Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)

Height: 13.18" (33.5cm)
Width: 16.92" (43cm)
Depth: 8.66" (22cm)

~30 lbs (13.6kg)

~65 lbs (29.5kg)

Chassis: 21lbs (9.5kg),
System: ~26lbs (12kg)
