NotePAC Family

Compact, rugged portable system with attachable displays and an optional battery. Configurable with the latest Intel® Core™ processor.

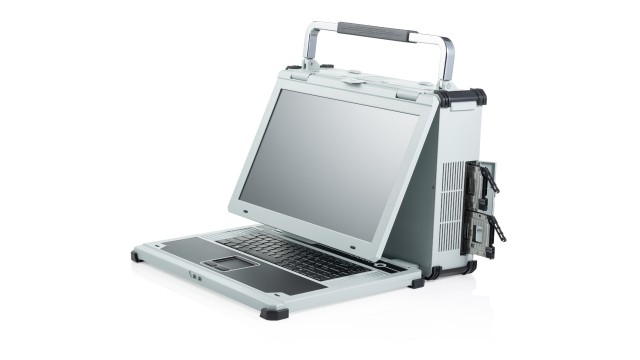

NotePAC Pro

Learn more

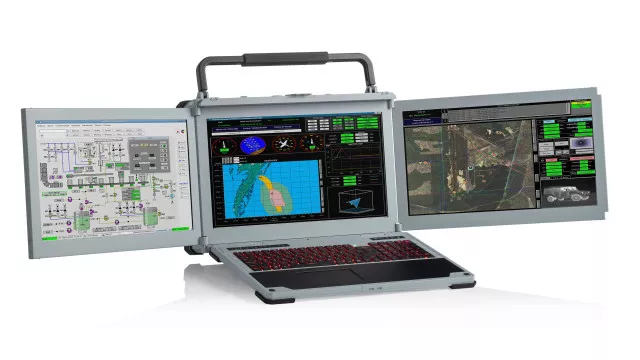

NotePAC III Pro V

NotePAC III Pro V

Learn more

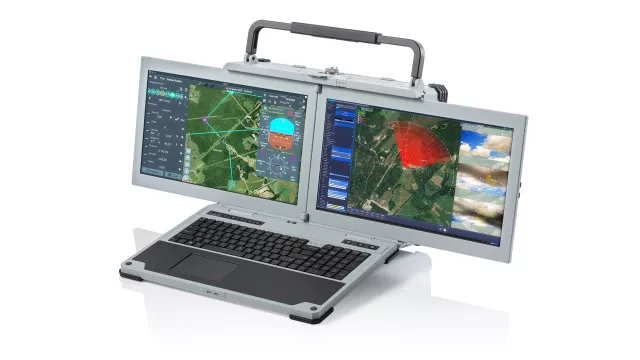

NotePAC II Pro V Main

NotePAC II Pro V

Learn more

NotePAC Family Technical Specs

NotePAC Pro Thumbnail NotePAC III Pro V Thumbnail NotePAC II Pro V Thumbnail

NotePAC Pro

NotePAC III Pro V

NotePAC II Pro V

Learn more

Learn more

Learn more

display icon

17.3" FHD 1920x1080

Upgradable options:
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays

display icon for NotePAC III Pro V

3x 17.3" FHD 1920x1080

Upgradable options:
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays

display icon for NotePAC II Pro V

2x 17.3" FHD 1920x1080

Upgradable options:
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays

cpu icon

Intel® Xeon® D-2183IT

cpu icon for NotePAC III Pro V

Intel® Xeon® D-2183IT

cpu icon for NotePAC II Pro V

Intel® Xeon® D-2183IT

memory icon

16GB DDR4 RAM, 2400
Upgradable to 32GB+

memory icon for NotePAC III Pro V

16GB DDR4 RAM
Upgradable to 32GB+

memory icon for NotePAC II Pro V

16GB DDR4 RAM
Upgradable to 32GB+

graphics-card icon

NVIDIA Quadro P4000

graphics-card icon for NotePAC III Pro V

NVIDIA Quadro P4000

graphics-card icon for NotePAC II Pro V

NVIDIA Quadro P4000

os-drive icon

512GB OS Drive

os-drive icon for NotePAC III Pro V

512GB OS Drive

os-drive icon for NotePAC II Pro V

512GB OS Drive

storage icon

1TB Data Drive (Total of 4 removable hard drive cages)

storage icon for NotePAC III Pro V

1TB Data Drive (Total of 4 removable hard drive cages)

storage icon for NotePAC II Pro V

1TB Data Drive (Total of 4 removable hard drive cages)

ports icon

Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,

CAC reader

ports icon for NotePAC III Pro V

Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,

CAC reader,

3x HDMI external clone

ports icon for NotePAC II Pro V

Quad LAN with Intel® Ethernet Controller I350-AM4,
Dual LAN with 10G SFP+ LAN via SoC,
Dual LAN with 10Gbase-T,

CAC reader,

3x HDMI external clone

power-supply icon

600W, 100~240 VAC External AC-DC Adapter; 6x 10.8V, 7,500mAh, 81Wh Batteries

power-supply icon for NotePAC III Pro V

600W, 100~240 VAC External AC-DC Adapter

power-supply icon for NotePAC II Pro V

600W, 100~240 VAC External AC-DC Adapter

input icon

19VDC/31.6A

input icon for NotePAC III Pro V

19VDC/31.6A

input icon for NotePAC II Pro V

19VDC/31.6A

output icon

19VDC

output icon for NotePAC III Pro V

19VDC

output icon for NotePAC II Pro V

19VDC

charger-specs icon

Charging voltage: 19V ± 1V,
Charging current: 13A ± 0.5A

charger-specs icon for NotePAC III Pro V

Charging voltage: 19V ± 1V,
Charging current: 13A ± 0.5A

charger-specs icon for NotePAC II Pro V

Charging voltage: 19V ± 1V,
Charging current: 13A ± 0.5A

card-reader icon

CAC Reader

card-reader icon for NotePAC III Pro V

CAC Reader

card-reader icon for NotePAC II Pro V

CAC Reader

dimensions icon

Height: 4.5" (114mm)
Width: 16.75" (425.5mm)
Depth: 12" (305mm)

dimensions icon for NotePAC III Pro V

Chassis dimensions:
Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 13.2" (335mm)


Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)

dimensions icon for NotePAC II Pro V

Chassis dimensions:
Height: 6.0" (153mm)
Width: 17.2" (437mm)
Depth: 13.2" (335mm)


Battery dimensions:
Height: 12.67" (322mm)
Width: 17.04" (433mm)
Depth: 2.71" (69mm)

weight icon

~24lbs (10.9kg)

weight icon for NotePAC III Pro V

26.5lbs (12kg)
Optional battery pack: Additional 6.6lbs (3kg)

weight icon for NotePAC II Pro V

26.5lbs (12kg)
Optional battery pack: Additional 6.6lbs (3kg)
