RMDDU Family

Rackmount dual display units.

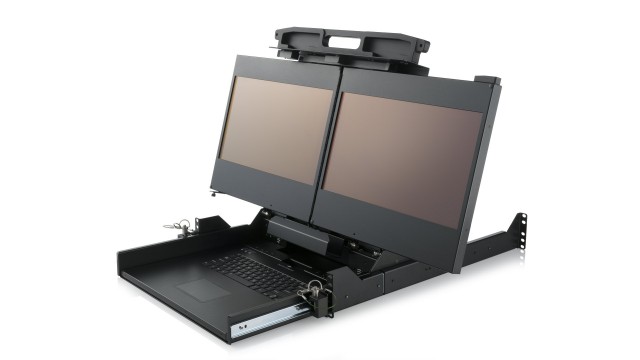

2U 17" dual screen rackmount LCD

The RMDDU 17 is a 2U 17" dual screen rackmount LCD with 2 ports.

RMDDU 17

Learn more

The RMDDU is a rugged 2U rack-mount drawer with dual-screen LCD monitors. The displays fold together, then down, and slide in for storage.

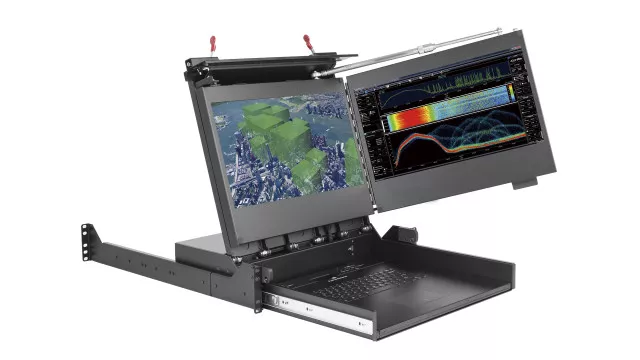

RMDDU 17A

Learn more

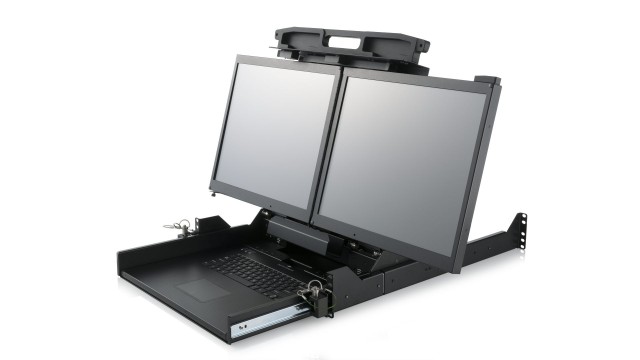

The RMDDU 19 is a rugged 2U rackmount drawer with dual 19" LCD monitors. The displays fold together, rotate, and slide in for storage.

RMDDU 19

Learn more

The RMDDU is a rugged 2U rack-mount drawer with dual-screen LCD monitors The displays fold together, rotate, and slide in for storage.

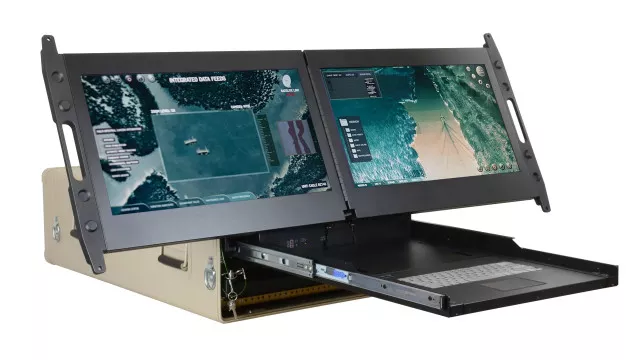

RMDDU 23

Learn more

RMDDU Family Technical Specs

RMDDU 17 Thumbnail RMDDU 17A Thumbnail RMDDU 19 Thumbnail RMDDU 23 Thumbnail

RMDDU 17

RMDDU 17A

RMDDU 19

RMDDU 23

Learn more

Learn more

Learn more

Learn more

display icon

Dual 17.3" Full HD 1920 x 1080, 16:9 Display

display icon for RMDDU 17A

Dual 17.3" Full HD 1920 x 1080, 16:9 Display

display icon for RMDDU 19

Dual 19" SXGA 1280 x 1024

display icon for RMDDU 23

Dual 23" Full HD 1920 x 1080

viewing-angle icon

Displays tilt ~15° from vertical

viewing-angle icon for RMDDU 17A

Displays tilt ~15° from vertical

viewing-angle icon for RMDDU 19

Displays tilt ~15° from vertical

viewing-angle icon for RMDDU 23

Displays tilt ~10° from vertical

ports icon

2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear
Analog VGA, DVI-D, Display Port

ports icon for RMDDU 17A

2x USB pass through inputs on front + 1x USB inputs on rear,
Analog VGA, DVI-D, HD-SDI, S Video-in for each display

ports icon for RMDDU 19

Internal USB 2.0 hub + 2x USB 2.0 inputs on front + 1x USB 2.0 inputs on rear,
Analog VGA, DVI-D, Displayport for each display

ports icon for RMDDU 23

2x DVI, 2x VGA, and 2x USB (1 set per display)

dimensions icon

Height: 2U - 3.46" (88mm)
Width: 17.76" (451mm)
Depth: 25.89" (657.6mm)

Rack Depth: 24" (609.6mm)

dimensions icon for RMDDU 17A

Height: 2U - 3.46" (88mm)
Width: 17.76" (451mm)
Depth: 25.89" (657.6mm)

dimensions icon for RMDDU 19

Height: 2U - 3.46" (88mm)
Width: 17.76" (451mm)
Depth: 25.89" (657.6mm)

dimensions icon for RMDDU 23

Height: 2U - 3.42" (88mm),
Width: 19.60" (498mm),
Depth: 32.23" (818.6mm)

weight icon

~42 lbs (19kg)

weight icon for RMDDU 17A

~42 lbs (19kg)

weight icon for RMDDU 19

~45 lbs (20.5kg)

weight icon for RMDDU 23

~60 lbs (27kg)
