SMK Family

Single-rail rackmount monitor keyboard.

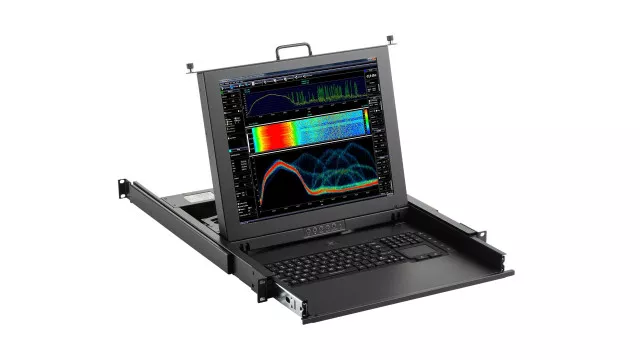

SMK 920

1U single-rail rack mount displa console with 1x KVM switch

SMK 920

Learn more

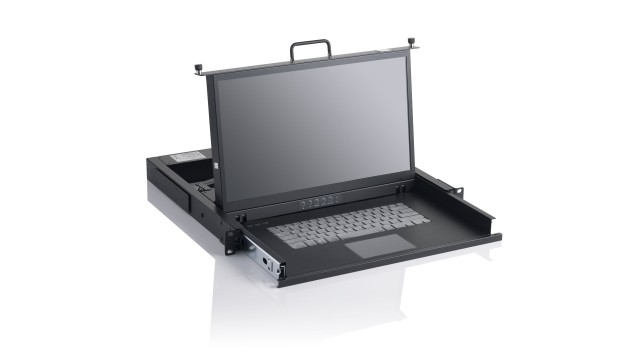

1U single-rail rackmount with an HD display

The SMK 920 HD is a single-rail rackmount with an HD display.

SMK 920 HD

Learn more

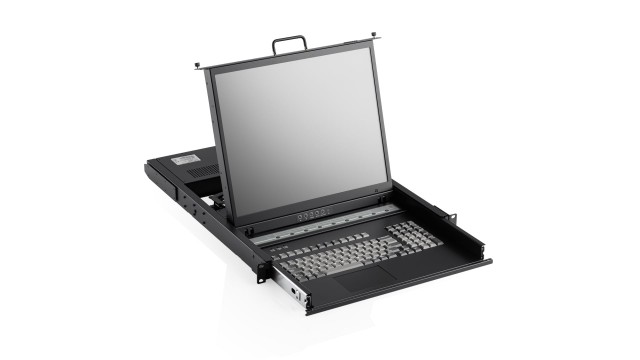

SMK 980

1U single-rail rack mount display console with 8x KVM switches

SMK 980

Learn more

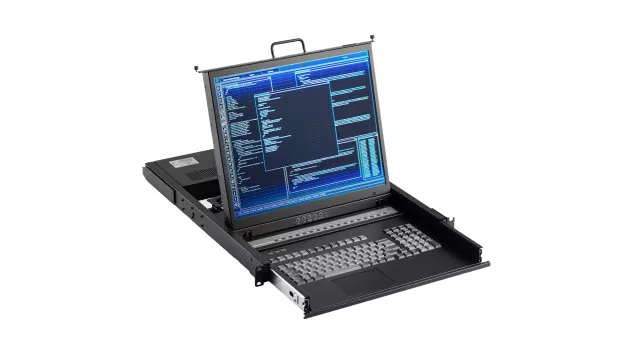

SMK 990

1U single-rail rack mount display console with 16x KVM switches

SMK 990

Learn more

SMK Family Technical Specs

SMK 920 Thumbnail SMK 920 HD Thumbnail SMK 980 Thumbnail SMK 990 Thumbnail

SMK 920

SMK 920 HD

SMK 980

SMK 990

Learn more

Learn more

Learn more

Learn more

display icon

17" or 19", 5:4 Display at 1280 x 1024 Resolution

display icon for SMK 920 HD

17.3", 16:9 Display at 1920 x 1080 Resolution

display icon for SMK 980

17" or 19", 5:4 Display at 1280 x 1024 Resolution

display icon for SMK 990

17" or 19", 5:4 Display at 1280 x 1024 Resolution

brightness icon

300 nits

brightness icon for SMK 920 HD

300 nits

brightness icon for SMK 980

300 nits

brightness icon for SMK 990

300 nits

contrast-ratio icon

500:1

contrast-ratio icon for SMK 920 HD

400:1

contrast-ratio icon for SMK 980

500:1

contrast-ratio icon for SMK 990

500:1

viewing-angle icon

170° (H) x 160° (V)

viewing-angle icon for SMK 920 HD

140°(H) x 120°(V)

viewing-angle icon for SMK 980

170° (H) x 160° (V)

viewing-angle icon for SMK 990

170° (H) x 160° (V)

color icon

16.2M Colors

color icon for SMK 920 HD

256K Colors

color icon for SMK 980

16.2M Colors

color icon for SMK 990

16.2M Colors

backlight-mtbf icon

50,000 Hours under 25±5°C

backlight-mtbf icon for SMK 920 HD

50,000 Hours under 25±5°C

backlight-mtbf icon for SMK 980

50,000 Hours under 25±5°C

backlight-mtbf icon for SMK 990

50,000 Hours under 25±5°C

ports icon

D-Sub 15 pin single-port KVM

ports icon for SMK 920 HD

Option 1: Single Port
Option 2: 8 ports

ports icon for SMK 980

8

ports icon for SMK 990

16x D-Sub 15 pins KVM Ports

dimensions icon

Height: 1U - 1.73" (44mm)
Width: 17.42" (442.5mm)
Depth: 19.68" (500mm)

dimensions icon for SMK 920 HD

Height: 1U - 1.73" (44mm)
Width: 17.6" (447mm)
Depth: 16.1" (409mm)

dimensions icon for SMK 980

Height: 1U - 1.73" (44mm)
Width: 17.42" (442mm)
Depth: 23.62" (600mm)

dimensions icon for SMK 990

Height: 1U - 1.73" (44mm)
Width: 17.42" (442mm)
Depth: 23.62" (600mm)

weight icon

~26.5 lbs (12kg)

weight icon for SMK 920 HD

~20lbs (9kg)

weight icon for SMK 980

~28.7 lbs (13kg)

weight icon for SMK 990

~31lbs (14kg)
