MilPAC Family

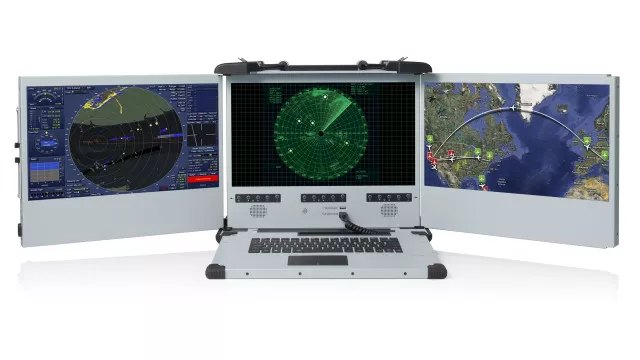

MilPAC III

The MilPAC III is a transportable, deployable workhorse for C4ISR / C5ISR, GIS and Geospacial applications. Rugged aluminum and composite construction provides survivability in deployed environments 24/7 and the ruggedness to withstand transport handling on wheeled and tracked land vehicles, fixed and rotary winged air vehicles.

MilPAC III

Learn more

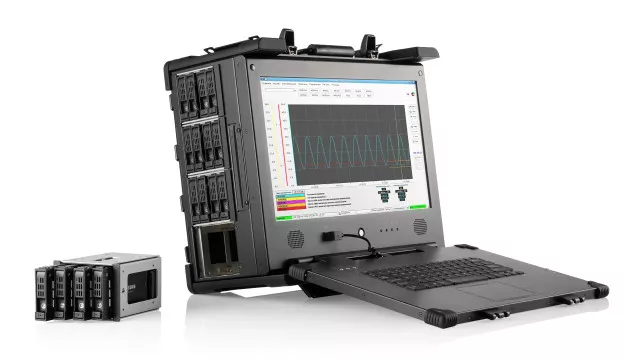

MilPAC SRHD

The MilPAC SRHD (short for slim removable hard drives) is a portable system specifically designed for portability with high storage capabilities.

MilPAC SRHD

Learn more

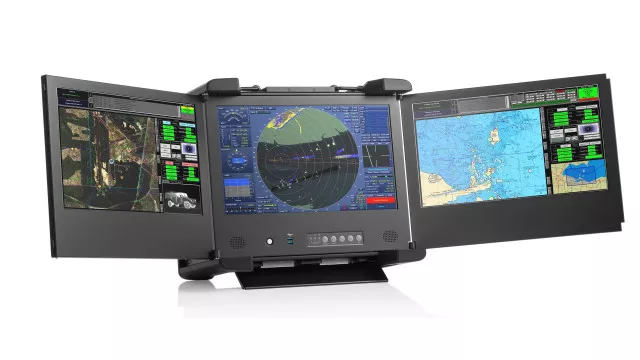

MilPAC III Lite Facing Right

The MilPAC III Lite is a more portable version of our MilPAC III. It has a triple multi-point touchscreen displays that fold into a compact package without requiring a keyboard for protection.

MilPAC III Lite

Learn more

MilPAC Family Technical Specs

MilPAC III Thumbnail MilPAC SRHD Thumbnail MilPAC III Lite Thumbnail

MilPAC III

MilPAC SRHD

MilPAC III Lite

Learn more

Learn more

Learn more

display icon

Triple 17.3" Full HD 1920 x 1080

display icon for MilPAC SRHD

17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option

display icon for MilPAC III Lite

Triple 17.3" Full HD 1920 x 1080

cpu icon

Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7

cpu icon for MilPAC SRHD

Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7

cpu icon for MilPAC III Lite

Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7

memory icon

Up to 1TB DDR5 RAM

memory icon for MilPAC SRHD

Up to 1TB DDR5 RAM

memory icon for MilPAC III Lite

Up to 1TB DDR5 RAM

graphics-card icon

Integrated HD graphic controller
or application-specific graphic controller

graphics-card icon for MilPAC SRHD

Integrated HD graphic controller
or application-specific graphic controller

graphics-card icon for MilPAC III Lite

Integrated HD graphic controller
or application-specific graphic controller

expansion-slots icon

Up to 7

expansion-slots icon for MilPAC SRHD

Up to 7

expansion-slots icon for MilPAC III Lite

Up to 7

storage icon

3x Removable Storage Drives, Up to 36TB

storage icon for MilPAC SRHD

4x4 Removable Storage Drives, Up to 80TB

storage icon for MilPAC III Lite

N/A

power-supply icon

1000W internal 110/220V 50/60Hz auto-switching power supply, AC power cord, Quad-fan Cooling System

power-supply icon for MilPAC SRHD

680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply

power-supply icon for MilPAC III Lite

680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply

dimensions icon

Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)

dimensions icon for MilPAC SRHD

Height: 14.5" (368mm)
Width: 18" (457mm)
Depth: 8.25" (209.5mm)

dimensions icon for MilPAC III Lite

Height: 15.3" (388.5mm)
Width: 19.24" (488.8mm)
Depth: 9.14" (232mm)

weight icon

~65 lbs (29.5kg)

weight icon for MilPAC SRHD

~42 lbs (19kg)

weight icon for MilPAC III Lite

N/A
