RMS Family

Rugged rackmount servers.

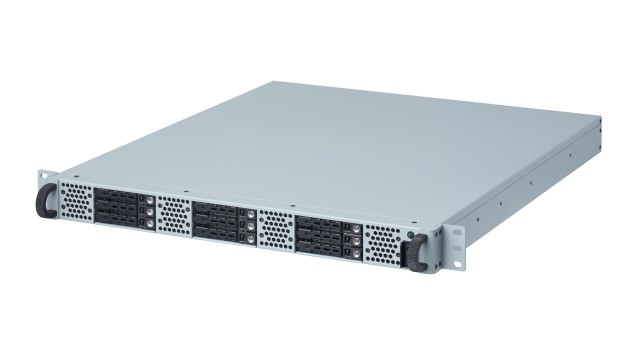

RMS 100

The RMS 100 is the perfect platform for practicing and simulating real-life military experiences. The gunner can undergo combat situations to better prepare for the future.

RMS 100

Learn more

RMS 200

The RMS 200 is a 2U rackmount server with military connectors, ideal for practicing and simulating real-life military experiences.

RMS 200

Learn more

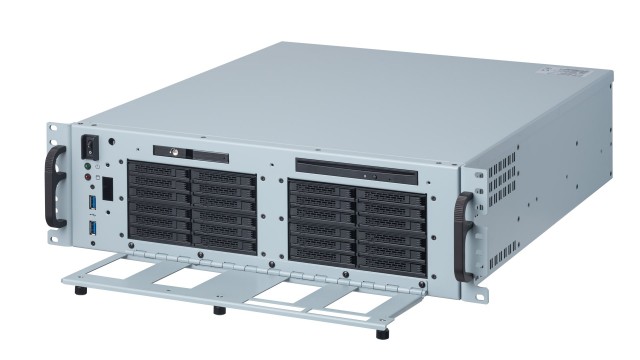

RMS 400

Designed to be both compact, versatile, and powerful, the RMS 400 is a 3U rugged rackmount server with massive storage for extreme versatility. This unit comes with 25x 2.5” removable trays. Meeting MIL-STD-810G requirements, this unit can perform under the harshest conditions.

RMS 400

Learn more

RMS Family Technical Specs

RMS 100 Thumbnail RMS 200 Thumbnail RMS 400 Thumbnail

RMS 100

RMS 200

RMS 400

Learn more

Learn more

Learn more

cpu icon

Dual Intel® Xeon® Silver 4116T Processors - 12 Cores, 24 Threads, 2.1GHz base freq, 3.0 GHz Max Freq, 16.5MB L2 Cache, 85W

cpu icon for RMS 200

Dual Intel® Xeon® Gold 6132 Processor - 14 Cores, 28 Threads, 2.6GHz base freq, 3.7GHz Max Freq, 19.25MB L2 Cache, 140W

cpu icon for RMS 400

Dual Intel® Xeon® Gold 6132 Processor - 14 Cores, 28 Threads, 2.6GHz base freq, 3.7GHz Max Freq, 19.25MB L2 Cache, 140W

memory icon

96GB

memory icon for RMS 200

128GB

memory icon for RMS 400

256GB DDR4-2933 Memory

os-drive icon

2TB 2.5" SSD

os-drive icon for RMS 200

2TB 2.5" SSD

os-drive icon for RMS 400

2TB 2.5" SSD

storage icon

9 tray removable bays

storage icon for RMS 200

16 tray removable bays

storage icon for RMS 400

24 Removable drive bays for 2.5" devices

expansion-slots icon

1x PCIe 3.0 x16,
3x PCIe 3.0 x8
1x PCIe 3.0 x4,
1x PCIe 2.0 x4

expansion-slots icon for RMS 200

N/A

expansion-slots icon for RMS 400

1x PCIe 3.0 x16,
3x PCIe 3.0 x8,
1x PCIe 3.0 x4,
1x PCIe 2.0 x4

ports icon

3x USB 2.0 ports,
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out

ports icon for RMS 200

Waterproof connectors for 6x USB 2.0 ports,
6x Giga Lan ports (not HUB),
1x COM port,
2x AUDIO out

ports icon for RMS 400

4x USB 2.0 ports (2x on the front),
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out

power-supply icon

800W redundant power supply

power-supply icon for RMS 200

680W power supply

power-supply icon for RMS 400

700W Dual AC redundant 110~220,
AC/DC input available on request

dimensions icon

Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm

dimensions icon for RMS 200

Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm

dimensions icon for RMS 400

Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm

weight icon

37.7 lbs (17kg)

weight icon for RMS 200

29.1 lbs (13.2kg)

weight icon for RMS 400

39.7 lbs (18kg)

optical-drive icon

1x DVD RW

optical-drive icon for RMS 200

1x DVD RW

optical-drive icon for RMS 400

N/A

temperature icon

(Operating) MIL-STD-810G, Method 501.5, Procedure II (-10 ~ +55C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-40 ~ +75C)

temperature icon for RMS 200

(Operating) MIL-STD-810G, Method 501.5, Procedure II (0 ~ +60C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-20 ~+80C)

temperature icon for RMS 400

(Operating) MIL-STD-810G, Method 501.5, Procedure II (0 ~ +60C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-20 ~+80C)
