MegaPAC L2

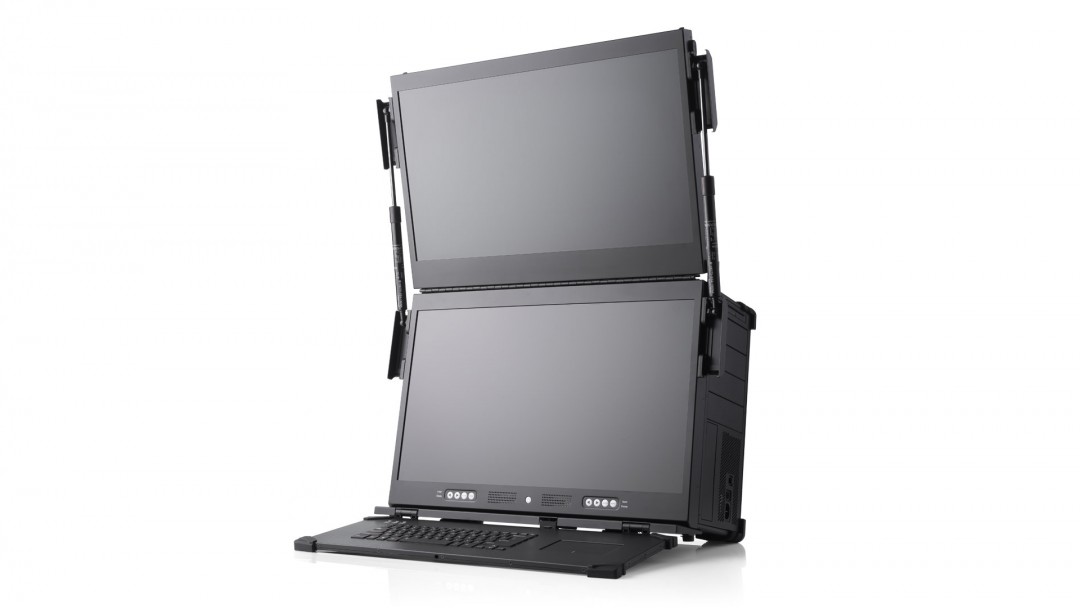

Dual 23.8" HD Displays in an up-down design integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

Download Datasheet

Dual Large Display Rugged Portable

The MegaPAC L2 is an extremely powerful workstation with two beautiful dual 23." 4K displays to observe new and intricate details. With 7 full-length expansion slots, it is an ideal platform for digital media related applications as it can be configured with many special add-on cards. The MegaPAC L2 is simply perfect for 3D rendering, post-production processes, and professional photography.

Technical Specifications

Product	MegaPAC L2
Display	Dual 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), or Dual 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), or Dual 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
CPU	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™
Memory	Up to 1TB DDR4 RAM
Graphics Card	Integrated HD graphic controller or application specific graphic controller
Expansion Slots	Up to 7
Storage	Up to 150TB (Removable Option Available)
Power Supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply
Dimensions	Height: 16.31" (414mm) Width: 24.58" (624mm) Depth: 10.56" (268mm)
Weight	~45 lbs (20kg)
Touch Option	Touchscreen Optional
WiFi / Bluetooth	WiFi and Bluetooth Optional
RAID	RAID 0/1/5/10
Keyboard & Mouse	105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case	Includes Padded Rolling Transit Case Optional :Hardened Case Available
Quality	ISO 9001
Customization	Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product	MegaPAC L2	FlexPAC L1	MegaPAC L1
Display	Dual 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), or Dual 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), or Dual 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)	17.3" or 18.5" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option	23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
CPU	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™
Memory	Up to 1TB DDR4 RAM	Up to 1TB DDR4 RAM	Up to 1TB DDR4 RAM
Graphics Card	Integrated HD graphic controller or application specific graphic controller	Integrated HD graphic controller or application-specific graphic controller	Integrated HD graphic controller or application-specific graphic controller
Expansion Slots	Up to 7	Up to 7	Up to 7
Storage	Up to 150TB (Removable Option Available)	Up to 48TB (Removable Option Available)	Up to 150TB (Removable Option Available)
Power Supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply	680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply Upgradable to 850W+	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply
Dimensions	Height: 16.31" (414mm) Width: 24.58" (624mm) Depth: 10.56" (268mm)	Height: 17.06" (433mm) Width: 13.67" (347mm) Depth: 9.02" (229mm)	Height: 15.12" (384mm) Width: 23.11" (587mm) Depth: 9.02" (229mm)
Weight	~45 lbs (20kg)	~30 lbs (13.6kg)	~40 lbs (18kg)
