Latest Update: Updated with more powerful batteries and higher watt-hours for longer usage between recharges!

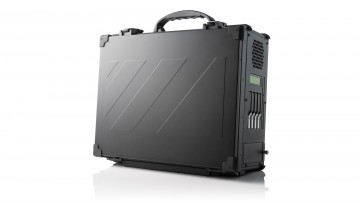

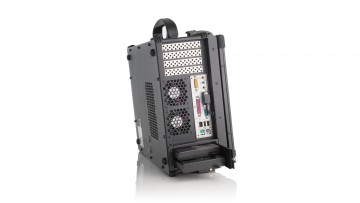

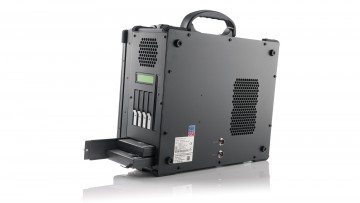

TransPAC


A battery-powered, compact, rugged portable with a 17.3" display and 4x expansion slots. Configurable with the latest Intel® Core™ or AMD processor.

Download Datasheet

Video Preview

Battery-Powered Portable Solution

For added mobility and portability, the TransPAC is a new and unique battery-powered solution. While most of our products are portable because of their compact form factor and light weight, the TransPAC takes it one step further; it is battery-powered.

Supporting a 220W power supply with 4x Li-ion 81Whr battery packs, you can use the TransPAC on the field for extended periods. It comes with a full HD display and can hold up to 16TB of HDD storage or 8TB of SSD storage. It is manufactured from high-strength, low weight aluminum creating a robust, powerful, reliable and ergonomic portable system. Featuring powerful computing elements, this portable can be configured to fulfill many demanding applications, especially for ones that are on the field.

Battery Charging Dock

The battery charging dock charges the hot-swappable DR202 batteries for the TransPAC and NotePAC series. This kit includes one battery charging dock, an AC-DC adapter, and a power cord.

It features a DC-input jack, six battery slots, and six LEDs for power and charging indicators. Connect the AC-DC adapter cable to the DC-input jack and then insert the battery packs in the correct direction into each slot to charge.

After inserting the battery pack in the slot, the LED indicators light up (orange) if the battery pack is being recharged. When fully charged, the indicator will turn blue.

Technical Specifications

Product TransPAC
Display 17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
CPU Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7
Memory Up to 768GB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 4
Storage Up to 20TB (Removable Option Available)
Power Supply 220W External AC-DC Adapter, 4x 81W batteries
Dimensions Height: 14.05" (357mm)
Width: 16.46" (418mm)
Depth: 6.96" (177mm)
Weight Chassis: ~18.7 lbs (8.5kg)
Touch Option Touchscreen Optional
WiFi / Bluetooth WiFi and Bluetooth Optional
RAID RAID 0/1/5/10
Keyboard & Mouse 105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case Includes Padded Rolling Transit Case
Optional :Hardened Case Available
Quality ISO 9001

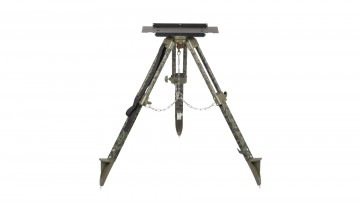

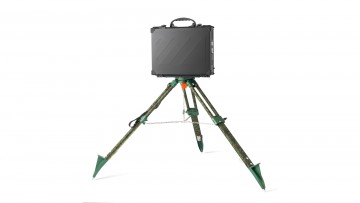

Accessories Tripod And Charger
Charger Specs Charging Slots: 3 or 6,
Charging Voltage: 12.6 ± 0.3V,
Charging Current: 4.7 ± 0.2A,
Input Voltage: 19V,
Operating Temperature : 0~40°,
Storage Temperature: -20~60°C,
Humidity: 0~90% non-condensing,
Dimensions: 12.6"L x 6.2"W x 3.2"H,
Weight: 2.86 lbs
Customization Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

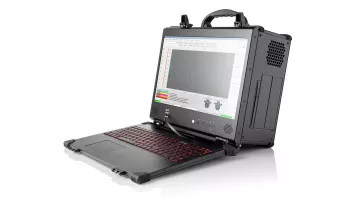

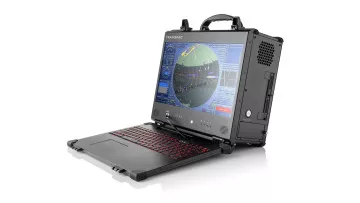

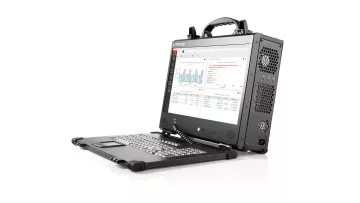

Product TransPAC DuraPAC DuraPAC Lite
Display 17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
CPU Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7
Memory Up to 768GB DDR4 RAM Up to 768GB DDR4 RAM Up to 64 GB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 4 Up to 4 Up to 2
Storage Up to 20TB (Removable Option Available) Up to 36TB (Removable Option Available) Storage Drives, Up to 15TB (Removable Option Available)
Power Supply 220W External AC-DC Adapter, 4x 81W batteries 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply 400W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Optional: 500W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Dimensions Height: 14.05" (357mm)
Width: 16.46" (418mm)
Depth: 6.96" (177mm)
Height: 13.62" (346mm)
Width: 16.50" (410mm)
Depth: 7.25" (184mm)
Width: 16.41" (418.8mm)
Height: 12.40" (315mm)
Depth: 4.39" (111.5mm)
Weight Chassis: ~18.7 lbs (8.5kg) ~23 lbs (10.4kg) ~16.5 lbs (7.5kg)
Accessories Tripod And Charger N/A N/A
Charger Specs Charging Slots: 3 or 6,
Charging Voltage: 12.6 ± 0.3V,
Charging Current: 4.7 ± 0.2A,
Input Voltage: 19V,
Operating Temperature : 0~40°,
Storage Temperature: -20~60°C,
Humidity: 0~90% non-condensing,
Dimensions: 12.6"L x 6.2"W x 3.2"H,
Weight: 2.86 lbs
N/A N/A
