MegaPAC L1

23.8" UHD Display integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

Download Datasheet

Large Display Rugged Portable

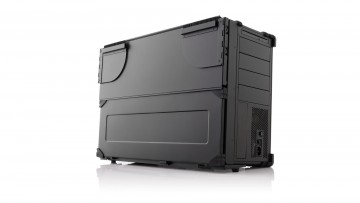

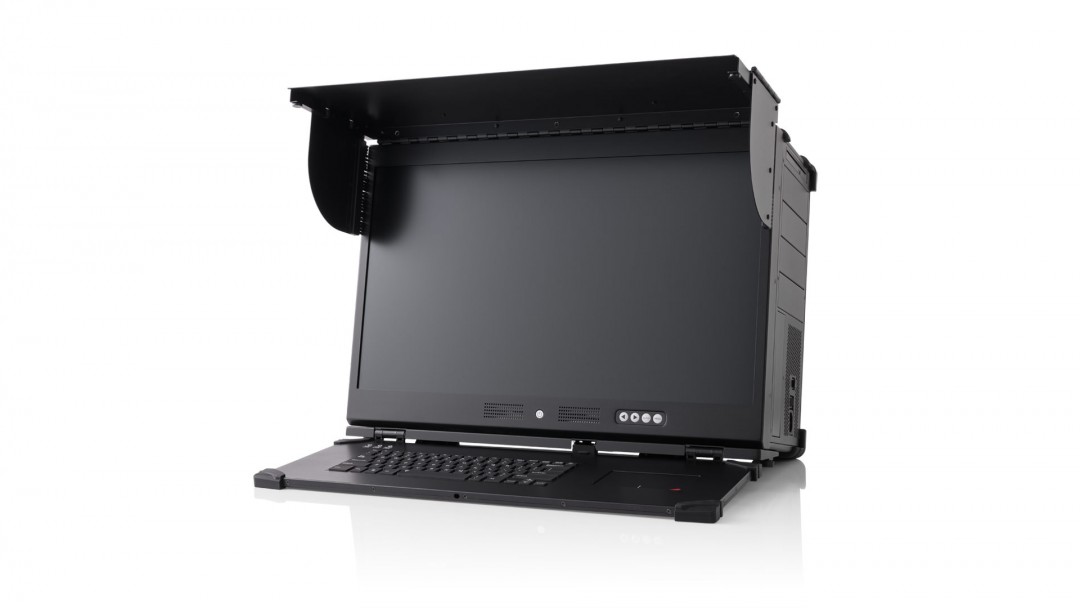

The MegaPAC L1 product is a robust portable computer built using all aluminum sheet metal to provide tough, go-anywhere unit suitable for tough environments and mobile applications. With the 23”, HD LCD display (optional upgrade: 23.8" 4K Display) and 7-expansion slots design, the MegaPAC L1 can easily fulfill requirement for digital media related applications in the broadcasting market. The MegaPAC L1 can also be configured with many special add-on cards for your unique applications. The integrated visor-shade optimizes viewing when ambient light or sunlight has become distracting. Optional touch screen allows MegaPAC L1 to operate without keyboard for quicker operations.

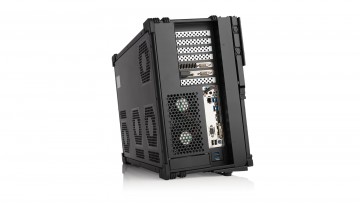

Every unit comes equipped with cooling fans and easy access to its expansion slots for immediate system upgrade or maintenance. With its functional design and rugged construction, the MegaPAC L1 is the most durable and versatile portable platform for your applications.

Technical Specifications

Product	MegaPAC L1
Display	23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
CPU	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™
Memory	Up to 1TB DDR4 RAM
Graphics Card	Integrated HD graphic controller or application-specific graphic controller
Expansion Slots	Up to 7
Storage	Up to 150TB (Removable Option Available)
Power Supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply
Dimensions	Height: 15.12" (384mm) Width: 23.11" (587mm) Depth: 9.02" (229mm)
Weight	~40 lbs (18kg)
Touch Option	Touchscreen Optional
WiFi / Bluetooth	WiFi and Bluetooth Optional
RAID	RAID 0/1/5/10
Keyboard & Mouse	105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case	Includes Padded Rolling Transit Case Optional :Hardened Case Available
Quality	ISO 9001
Customization	Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product	MegaPAC L1	DuraPAC	FlexPAC L1
Display	23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)	17.3" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option	17.3" or 18.5" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option
CPU	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™	Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7	Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™
Memory	Up to 1TB DDR4 RAM	Up to 768GB DDR4 RAM	Up to 1TB DDR4 RAM
Graphics Card	Integrated HD graphic controller or application-specific graphic controller	Integrated HD graphic controller or application-specific graphic controller	Integrated HD graphic controller or application-specific graphic controller
Expansion Slots	Up to 7	Up to 4	Up to 7
Storage	Up to 150TB (Removable Option Available)	Up to 36TB (Removable Option Available)	Up to 48TB (Removable Option Available)
Power Supply	850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply	680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply	680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply Upgradable to 850W+
Dimensions	Height: 15.12" (384mm) Width: 23.11" (587mm) Depth: 9.02" (229mm)	Height: 13.62" (346mm) Width: 16.50" (410mm) Depth: 7.25" (184mm)	Height: 17.06" (433mm) Width: 13.67" (347mm) Depth: 9.02" (229mm)
Weight	~40 lbs (18kg)	~23 lbs (10.4kg)	~30 lbs (13.6kg)
