RMDDU 19

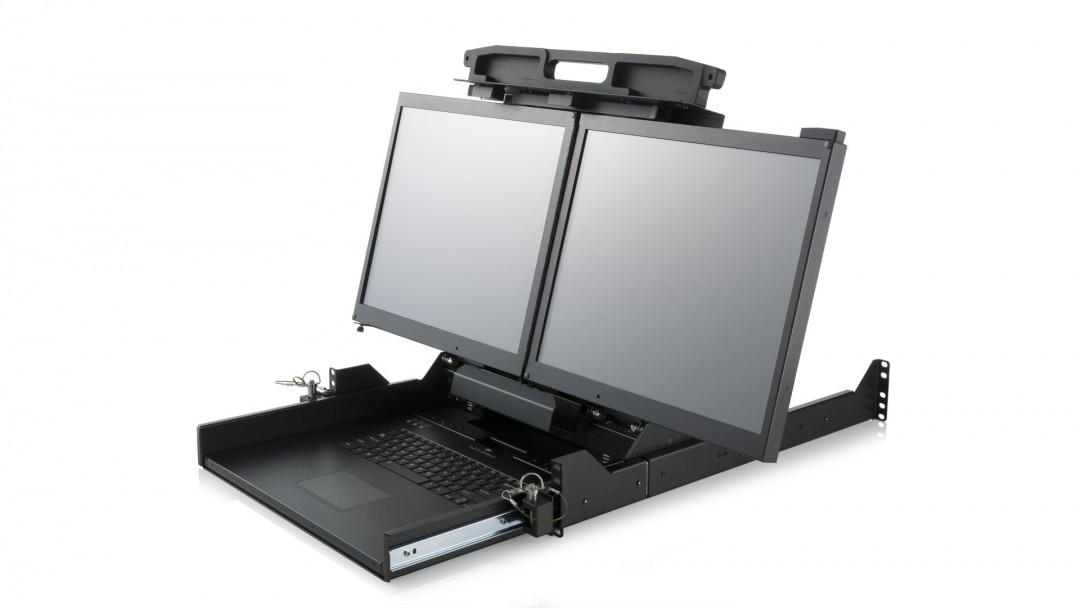

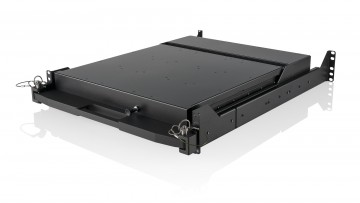

The RMDDU 19 is a rugged 2U rackmount drawer with dual 19" monitors. The displays fold together, rotate, and slide in for storage.

Download Datasheet

Video Preview

2U Rugged 19" Dual Screen Rackmount With 2 Ports

The RMDDU 19 is a rugged 2U rackmount drawer with dual 19" monitors. The displays fold together, rotate, and slide in for storage.

It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.

Technical Specifications

Product RMDDU 19
Display Dual 19" SXGA 1280 x 1024
Viewing Angle Displays tilt ~15° from vertical

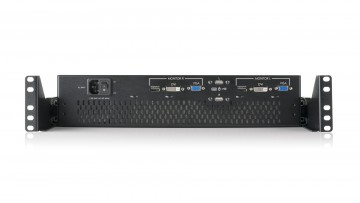

Ports Internal USB 2.0 hub + 2x USB 2.0 inputs on front + 1x USB 2.0 inputs on rear,
Analog VGA, DVI-D, Displayport for each display
Power Supply 115/230 VAC, 50/60Hz, 100W Max
Keyboard & Mouse 101 keys backlit keyboard with touchpad and adjustable brightness. Resistive Touchpad
Optional: Waterproof keyboard
Dimensions Height: 2U - 3.46" (88mm)
Width: 17.76" (451mm)
Depth: 25.89" (657.6mm)
Weight ~45 lbs (20.5kg)
Temperature MIL-STD-810E (501.4, 502.4),
Operating: 0 ~ 50°C,
Non-Operating: -40 ~ 70°C
Humidity MIL-STD-810E (507.2),
Relative Humidity: 5% to 95% operating, non-condensing
Altitude MIL-STD-810E (500.3),
Operating: 15,000 ft (4571.8 m),
Non-Operating: 40,000 ft (12,192 m)
Vibration MIL-STD-810E (514.4),
Operating: 10 to 500 Hz 1.04 g (RMS)
Shock MIL-STD-810E (516.4),
Operating: 15 G, 8 ms 1/2 sine,
Non-Operating: 40 G, 8 ms 1/2 sine
Drop 4" stand alone, 39" transit drop in transit case
Customization Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product RMDDU 19 RMDDU 17 RMDDU 23
Display Dual 19" SXGA 1280 x 1024 Dual 17.3" Full HD 1920 x 1080, 16:9 Display Dual 23" Full HD 1920 x 1080
Viewing Angle Displays tilt ~15° from vertical Displays tilt ~15° from vertical Displays tilt ~10° from vertical
Ports Internal USB 2.0 hub + 2x USB 2.0 inputs on front + 1x USB 2.0 inputs on rear,
Analog VGA, DVI-D, Displayport for each display
2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear
Analog VGA, DVI-D, Display Port
2x DVI, 2x VGA, and 2x USB (1 set per display)
Dimensions Height: 2U - 3.46" (88mm)
Width: 17.76" (451mm)
Depth: 25.89" (657.6mm)
Height: 2U - 3.46" (88mm)
Width: 17.76" (451mm)
Depth: 25.89" (657.6mm)

Rack Depth: 24" (609.6mm)
Height: 2U - 3.42" (88mm),
Width: 19.60" (498mm),
Depth: 32.23" (818.6mm)
Weight ~45 lbs (20.5kg) ~42 lbs (19kg) ~60 lbs (27kg)
