RMDDU 17

The RMDDU 17 is a 2U 17" dual screen rackmount with 2 ports.

2U Dual Screen Rackmount With 2 Ports

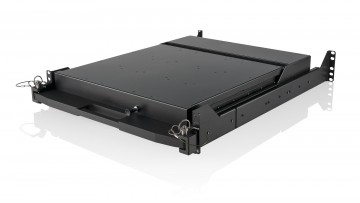

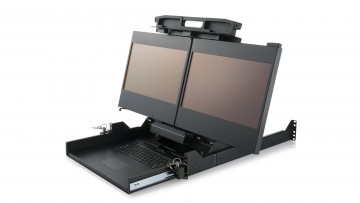

The RMDDU is a rugged 2U rack-mount drawer with dual-screen monitors The displays fold together, rotate, and slide in for storage.

It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.

Technical Specifications

Product	RMDDU 17
Display	Dual 17.3" Full HD 1920 x 1080, 16:9 Display
Viewing Angle	Displays tilt ~15° from vertical
Ports	2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear Analog VGA, DVI-D, Display Port
Power Supply	115/230 VAC, 50/60Hz, 100W Max
Keyboard & Mouse	101 keys backlit keyboard with touchpad and adjustable brightness. Resistive Touchpad Optional: Waterproof keyboard
Dimensions	Height: 2U - 3.46" (88mm) Width: 17.76" (451mm) Depth: 25.89" (657.6mm) Rack Depth: 24" (609.6mm)
Weight	~42 lbs (19kg)
Temperature	MIL-STD-810E (501.4, 502.4), Operating: 0 ~ 50°C, Non-Operating: -40 ~ 70°C
Humidity	MIL-STD-810E (507.2), Relative Humidity: 5% to 95% operating, non-condensing
Altitude	MIL-STD-810E (500.3), Operating: 15,000 ft (4571.8 m), Non-Operating: 40,000 ft (12,192 m)
Vibration	MIL-STD-810E (514.4) Operating: 10 to 500 Hz 1.04 g (RMS)
Shock	MIL-STD-810E (516.4), Operating: 15 G, 8 ms 1/2 sine, Non-Operating: 40 G, 8 ms 1/2 sine
Drop	4" stand alone, 39" transit drop in transit case
Customization	Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product	RMDDU 17	RMDDU 19	RMDDU 23
Display	Dual 17.3" Full HD 1920 x 1080, 16:9 Display	Dual 19" SXGA 1280 x 1024	Dual 23" Full HD 1920 x 1080
Viewing Angle	Displays tilt ~15° from vertical	Displays tilt ~15° from vertical	Displays tilt ~10° from vertical
Ports	2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear Analog VGA, DVI-D, Display Port	Internal USB 2.0 hub + 2x USB 2.0 inputs on front + 1x USB 2.0 inputs on rear, Analog VGA, DVI-D, Displayport for each display	2x DVI, 2x VGA, and 2x USB (1 set per display)
Dimensions	Height: 2U - 3.46" (88mm) Width: 17.76" (451mm) Depth: 25.89" (657.6mm) Rack Depth: 24" (609.6mm)	Height: 2U - 3.46" (88mm) Width: 17.76" (451mm) Depth: 25.89" (657.6mm)	Height: 2U - 3.42" (88mm), Width: 19.60" (498mm), Depth: 32.23" (818.6mm)
Weight	~42 lbs (19kg)	~45 lbs (20.5kg)	~60 lbs (27kg)
