MilPAC III


The MilPAC III is a transportable, deployable workhorse for C4ISR / C5ISR, GIS and Geospacial applications. Rugged aluminum and composite construction provides survivability in deployed environments 24/7 and the ruggedness to withstand transport handling on wheeled and tracked land vehicles, fixed and rotary winged air vehicles.

Download Datasheet

Video Preview

Fully Rugged HD Triple Display System

The MilPAC III is a transportable, deployable workhorse for C4ISR / C5ISR, GIS and Geospacial applications. Rugged aluminum and composite construction provides survivability in deployed environments 24/7 and the ruggedness to withstand transport handling on wheeled and tracked land vehicles, fixed and rotary winged air vehicles.

High efficiency thermostatic convection cooling and airflow systems result in a quiet, professional system at normal ambient temperatures that can also perform when the environment gets extreme.

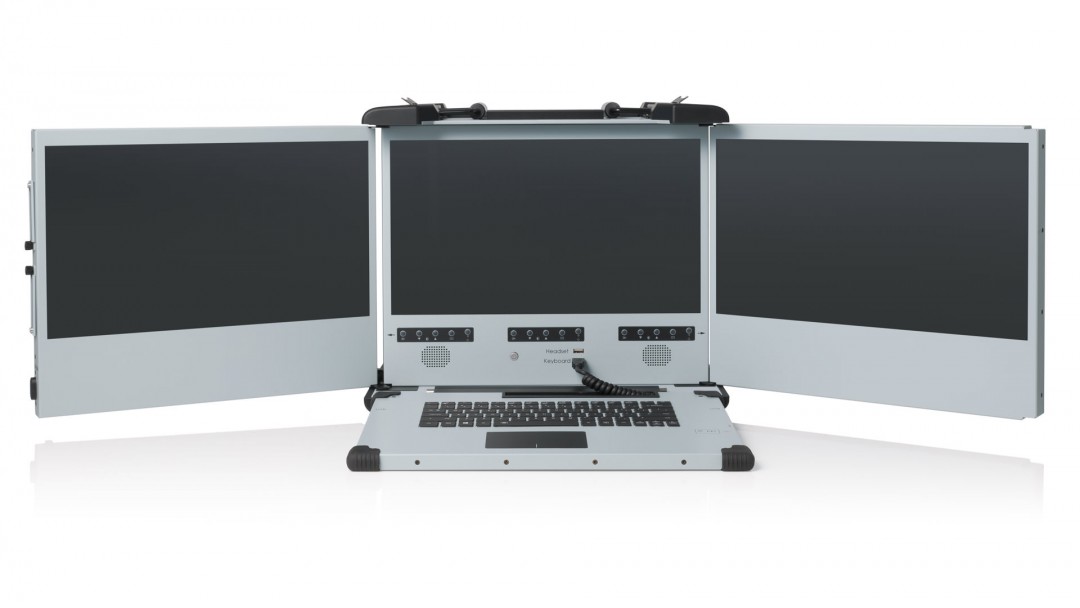

Three 17.3" HD displays give a working resolution of 5760 x 1080. Outputs for each display enable mirroring to external HD TV or projector systems, and multiple SD/HD video capture inputs make the MilPAC III the hub of an integrated C4ISR system. Add-on building block display modules are also available in a separate shipping case to expand the displays to a 9-display 3 x 3 configuration, or 5760 x 3240 scene space.

The MilPAC III is highly configurable; please contact us to optimize your specifications.

Technical Specifications

Product MilPAC III
Display Triple 17.3" Full HD 1920 x 1080
CPU Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7
Memory Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 7
Storage 3x Removable Storage Drives, Up to 36TB
Power Supply 1000W internal 110/220V 50/60Hz auto-switching power supply, AC power cord, Quad-fan Cooling System
Dimensions Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)
Weight ~65 lbs (29.5kg)
Touch Option Touchscreen Optional
WiFi / Bluetooth WiFi and Bluetooth optional
RAID RAID 0/1/5/10
Keyboard & Mouse 105-key keyboard with integrated touchpad. Available in variety of languages.
Transit Case Includes Padded Rolling Transit Case
Optional: Hardened Case Available
Quality ISO 9001
Customization Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.

* Please note that the hardware specifications listed on our website are subject to change without prior notice.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product MilPAC III FlexPAC L3 FlexPAC III-24
Display Triple 17.3" Full HD 1920 x 1080 Triple 17.3" or 18.5" Full HD 1920x1080 Triple 24" UHD 3840 x 2160
or Triple 24" Full HD 1920 x 1080
or Triple 24" WUXGA 1920 x 1200
CPU Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7 Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™ Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™
Memory Up to 1TB DDR4 RAM Up to 1TB DDR4 RAM Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application specific graphic controller
Integrated HD graphic controller
or application specific graphic controller
Expansion Slots Up to 7 Up to 7 Up to 7
Storage 3x Removable Storage Drives, Up to 36TB Up to 36TB (Removable Option Available) Up to 150TB (Removable Option Available)
Power Supply 1000W internal 110/220V 50/60Hz auto-switching power supply, AC power cord, Quad-fan Cooling System 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Dimensions Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)
Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)
Height: 15.12"
Width: 23.11"
Depth: 9.02"
Weight ~65 lbs (29.5kg) ~47 lbs (21.3kg) ~65 lbs
