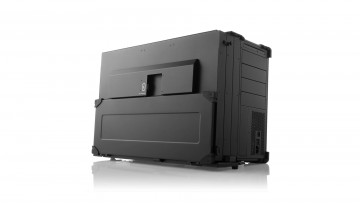

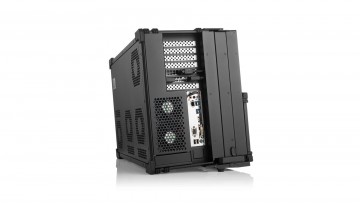

MegaPAC L3
Triple 24" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications.

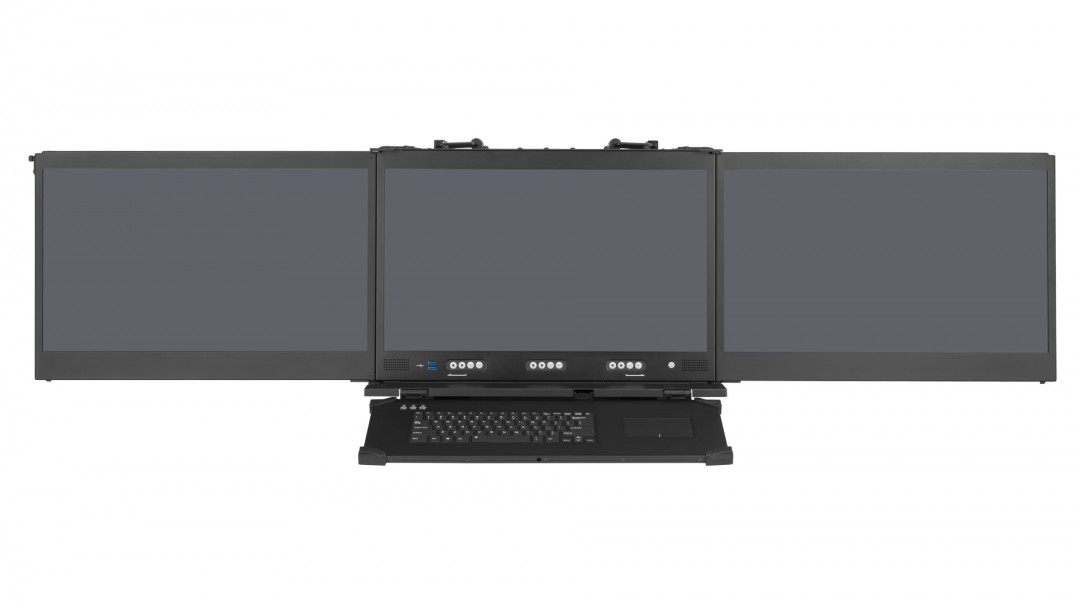

The MegaPAC L3 comes with 3x Ultra HD displays for a massive combined 11620x6480 resolution (3840 x 2160 per display). See hidden and subtle details with these three beautiful and massive displays.
While the triple 4K displays are a key feature for the MegaPAC L3, it also comes with an impressive 7 full-length expansion slots. It can have up to 1TB of memory and 150 TB of storage. The MegaPAC L3 can be used in any situation for any applications.
Triple Large Display High Performance Rugged Portable
The FlexPAC III is a classic system at ACME Portable. With its power and displays, it was a popular mobile command control center used in emergency situations, simulations, and more. Nevertheless, there has been an increasing demand for a stronger system. As a result, now equipped with ultra HD resolutions, we have created the MegaPAC L3!
The MegaPAC L3 takes all the popular aspects of the FlexPAC III and makes it even bigger and better.
Technical Specifications
| Product | MegaPAC L3 |
|---|---|
| Display | Triple 23.8" UHD 3840 x 2160, Triple 23.8" Full HD 1920 x 1080, Triple 23.8" WUXGA 1920 x 1200 |
| CPU | Latest Single/Dual Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 |
| Memory | Up to 1TB DDR4 RAM |
| Graphics Card | Integrated HD graphic controller or application-specific graphic controller |
| Expansion Slots | Up to 7 |
| Storage | Up to 150TB (Removable Option Available) |
| Power Supply | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply |
| Dimensions | Height: 16.39", Width: 22.96", Depth: 11.98" |
| Weight | SKD: 43.85 lbs, System: 52.82 lbs |
| Touch Option | Touchscreen Optional |
| WiFi / Bluetooth | WiFi and Bluetooth Optional |
| RAID | RAID 0/1/5/10 |
| Keyboard & Mouse | 105-key Keyboard With Integrated Touchpad. Available in a variety of languages. |
| Transit Case | Includes Padded Rolling Transit Case Optional :Hardened Case Available |
| Quality | ISO 9001 |
| Regulation | CE, FCC, RoHS, CCC |
| Warranty | 1 Year Parts And Labor |
Configuration Options
The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.
Contact SalesCompare Similar Systems
At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.
View Comparable Systems| Product |
MegaPAC L3
|
MegaPAC L2
|
FlexPAC III
|
|---|---|---|---|
| Display | Triple 23.8" UHD 3840 x 2160, Triple 23.8" Full HD 1920 x 1080, Triple 23.8" WUXGA 1920 x 1200 |
Dual 24" UHD 3840 x 2160, or Dual 24" Full HD 1920 x 1080, or Dual 24" WUXGA 1920 x 1200 |
Triple 17.3" Full HD 1920x1080 |
| CPU | Latest Single/Dual Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 | Latest Single/Dual Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 | Latest Single/Dual Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 |
| Memory | Up to 1TB DDR4 RAM | Up to 1TB DDR4 RAM | Up to 1TB DDR4 RAM |
| Graphics Card | Integrated HD graphic controller or application-specific graphic controller |
Integrated HD graphic controller or application specific graphic controller |
Integrated HD graphic controller or application specific graphic controller |
| Expansion Slots | Up to 7 | Up to 7 | Up to 7 |
| Storage | Up to 150TB (Removable Option Available) | Up to 150 TB (Removable Option Available) | Up to 36 TB (Removable Option Available) |
| Power Supply | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply |
| Dimensions | Height: 16.39", Width: 22.96", Depth: 11.98" |
Height: 15.12", Width: 23.11", Depth: 9.02" |
Folded: Height: 14.5" Width: 17.125" Depth: 11.75" Deployed: Height: 14.5" Width: 43.0" Depth: 11.75" |
| Weight | SKD: 43.85 lbs, System: 52.82 lbs |
~45 lbs | ~65 lbs |
