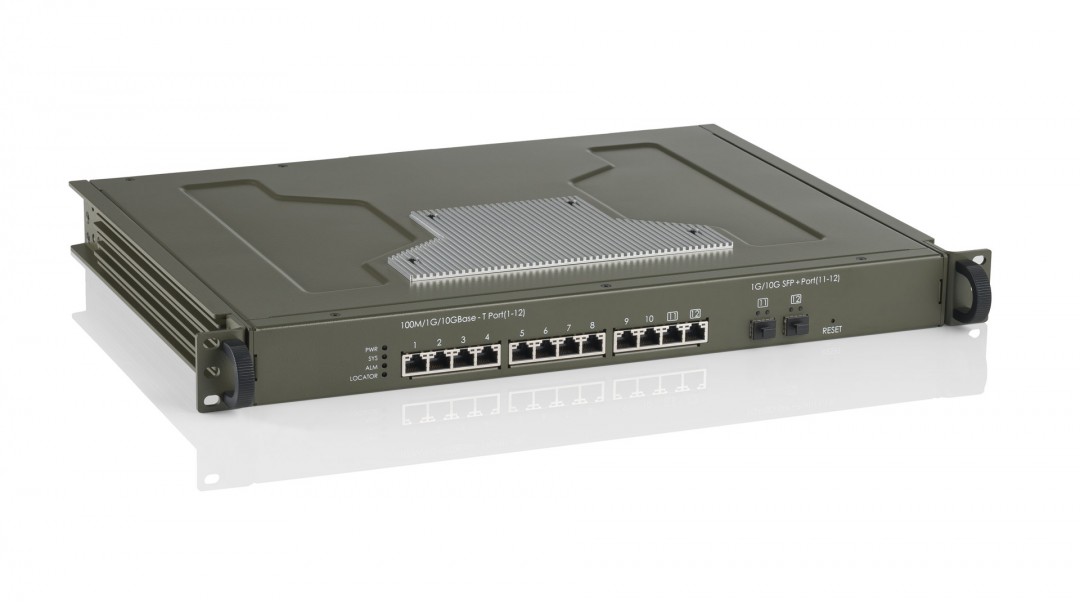

RNA 112-10S


The RNA 112-10S is a 10GbE smart switch for SMB that economically upgrades any network to high-speed 10GbE bandwidth.

RNA 112-10S Main
RNA 112-10S0 Main Thumbnail

12 Port 10Gbe Smart Managed Switch

In today's rapidly changing world of cloud-based products and services, it can be difficult for the military to decide how to best handle increased data and the demands of applications, video streaming, and IP surveillance. In this environment, networks need to be both faster and more reliable. They need to be easy to set up and maintain. To help meet these challenges, ACME has introduced the RNA 112-10S, a 10GbE smart switch for SMB that economically upgrades any network to high-speed 10GbE bandwidth.

Technical Specifications

View All Specs

Product RNA 112-10S
Memory 128MB RAM, 16MB Flash
Ports 12
Power Supply 100 ~ 240 VAC 50/60Hz
Dimensions Meets EIA/ECA-310-19" Rackmount 1U, Depth: 600mm
Altitude MIL-STD-810G Method 500.5 Procedure II, 4572m, Functional
Temperature (operating) MIL-STD-810G, Method 501.5, Procedure II (-0°C ~ + 60°C) for AC input, Procedure II (-25°C ~ + 75°C) for DC input
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-40°C ~ + 80°C)
Humidity MIL-STD-810G Method 507.5, 73 +/- 4 F and 50 +/- 5 percent Relative Humidity RH
Vibration MIL-STD-810G, Method 514.6, Procedure I , Random General vibration, FunctionalMIL-STD-810G, Method 514.6, Procedure I , Random General vibration, Functional
Shock MIL-STD-810G, Method 516.6, Procedure I , Saw tooth wave, 20G/11ms, Functional
Regulation CE, FCC, UL, CCC, RoHS
Warranty 1 year parts and labor

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

View Comparable Systems
Product RNA 112-10S RMS 200 RMS 400
Memory 128MB RAM, 16MB Flash Wide Temperature RAM - 8 GB DDR3, up to 16 GB 64GB DDR4, 2133MHZ, and up to 128 GB
Ports 12 Waterproof connectors for 6x USB 2.0 ports,
6x Giga Lan ports (not HUB),
1x COM port,
2x AUDIO out
4x USB 2.0 ports (2x on the front),
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out
Dimensions Meets EIA/ECA-310-19" Rackmount 1U, Depth: 600mm Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Altitude MIL-STD-810G Method 500.5 Procedure II, 4572m, Functional N/A N/A
Temperature (operating) MIL-STD-810G, Method 501.5, Procedure II (-0°C ~ + 60°C) for AC input, Procedure II (-25°C ~ + 75°C) for DC input
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-40°C ~ + 80°C)
(Operating) MIL-STD-810G, Method 501.5, Procedure II (0 ~ +60C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-20 ~+80C)
(Operating) MIL-STD-810G, Method 501.5, Procedure II (0 ~ +60C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-20 ~+80C)
Humidity MIL-STD-810G Method 507.5, 73 +/- 4 F and 50 +/- 5 percent Relative Humidity RH N/A N/A
