NetPAC


Next-generation, high-density storage workstation with up to 5 expansion slots. With up to 80 TB of storage, this portable computer is ideal for post production or test and measurement.

Massive Storage

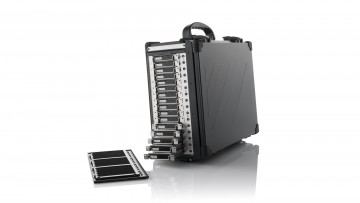

What separates the NetPAC from the rest is its massive storage. This portable computer supports up to 16 removable 2.5" removable drive bays for a total of 80 TB storage. In addition to massive storage, these hot swappable HDD/SSD make for easy transfer, upgrade, and maintenance.

High Speed Read/Write

The NetPAC is integrated with high speed 12Gb/s RAID card and media for the fastest data sequential write performance. It has been designed from ground up to meet the requirements on cooling, massive storage expansion and serviceability.

Network Appliance Platform

When you combine the massive storage, high-speed RAID card, and great cooling, the NetPAC simply becomes a powerful network appliance platform. It is an all-in-one portable form factor that can be integrated with high-performance 20G/40G network capture cards. As a result, it is capable of sustained, multi-gigabit per second recording of network traffic without packet drops.

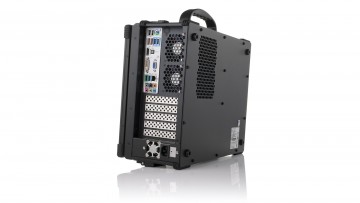

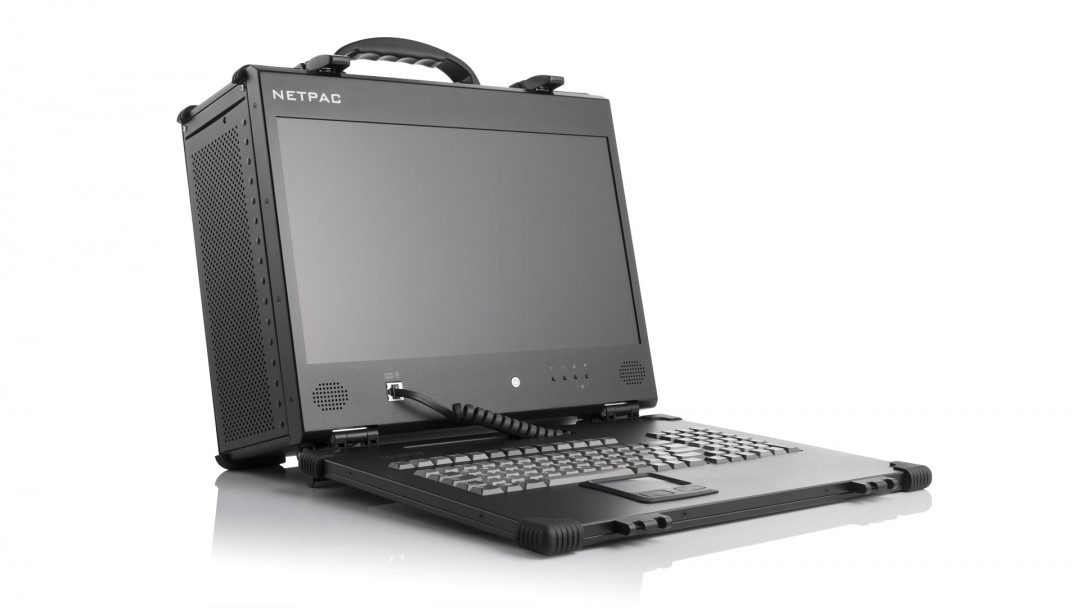

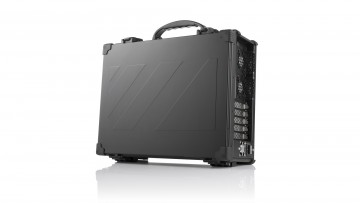

NetPAC Main
NetPAC0 Main Thumbnail NetPAC1 Main Thumbnail NetPAC2 Main Thumbnail NetPAC3 Main Thumbnail
NetPAC0 Video

High Storage Portable Server

The NetPAC is your next-generation portable server for network monitoring, capturing, and analysis. This server has been designed from the ground up to meet the applications' requirements on cooling, massive storage expansion and serviceability. Fully integrated with enterprise class SAS drives and RAID controller with up to 12Gb/s throughput per port, the NetPAC is the most powerful network appliance portable platform. When integrated with high-performance 1GbE, 10GbE, and 20GbE capture cards, it is capable of sustained, multi-gigabit per second recording of network traffic without packet drops.

The NetPAC simply provides an effective and indispensable platform for the manipulation and in-depth analysis of network traffic recording applications.

Technical Specifications

View All Specs

Product NetPAC
Display 17.3" Full HD 1920 x 1080
CPU Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7
Memory Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 5
Storage 16x Removable Storage Drives - up to 80 TB
Power Supply 680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Dimensions Height: 14.68"
Width: 17.15"
Depth: 7.00"
Weight ~32 lbs
Touch Option Touchscreen Optional
WiFi / Bluetooth WiFi and Bluetooth Optional
RAID RAID 0/1/5/10
Keyboard & Mouse 105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case Includes Padded Rolling Transit Case
Optional :Hardened Case Available
Quality ISO 9001
Regulation CE, FCC, RoHS, CCC
Warranty 1 year parts and labor

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

View Comparable Systems
Product NetPAC DuraPAC NetPAC Lite
Display 17.3" Full HD 1920 x 1080 17.3" Full HD 1920 x 1080 15.6" Full HD 1920 x 1080
CPU Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7
Memory Up to 1TB DDR4 RAM Up to 768GB DDR4 RAM Up to 768GB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 5 Up to 4 Up to 4
Storage 16x Removable Storage Drives - up to 80 TB Up to 36TB (Removable Option Available) 8x Removable Storage Drives - up to 40 TB
Power Supply 680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply 400W 100-240V 47-63 Hz 80PLUS Power Supply
Dimensions Height: 14.68"
Width: 17.15"
Depth: 7.00"
Height: 13.62"
Width: 16.50"
Depth: 7.25"
Height: 10"
Width: 15"
Depth: 7"
Weight ~32 lbs ~29 lbs ~16.5 lbs
