RMS 200


The RMS 200 is a 2U rackmount server with military connectors, ideal for practicing and simulating real-life military experiences.

Compact and Powerful

The RMS 200 was designed and developed to pack maximum power in a compact form factor. In only a 2U chassis, this unit can fit in almost any rack space while still offering incredibly high computing power.

Rugged Construction

While compact and powerful, the RMS 200 is also extremely rugged. With waterproof connectors, it is built to meet MIL-STD-810G requirements.

RMS 200 Main
RMS 2000 Main Thumbnail RMS 2001 Main Thumbnail RMS 2002 Main Thumbnail

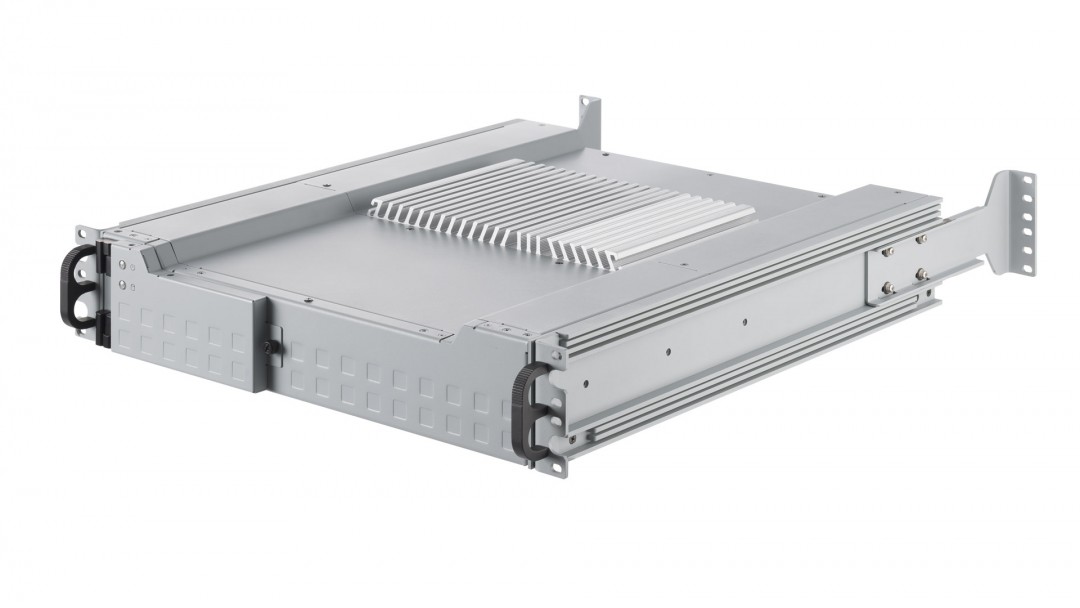

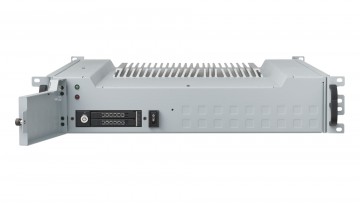

2U Rackmount Server With Military Connectors

The RMS 200 is the perfect platform for practicing and simulating real-life military experiences. The gunner can undergo combat situations to better prepare for the future.

It is a MIL-STD portable server designed for data acquisition, simulation, and training. The RMS 200 is integrated with fully sealed Mil-Spec connectors and heavy-duty filters for the harshest of environments. Dual AC and DC power supply with redundant fail-over allows uninterrupted operations both in vehicles and in command tents. It has also been designed to operate in wide temperature ranges, extending its compatibility to more military applications.

Technical Specifications

View All Specs

Product RMS 200
CPU Intel i7-3610QE
Memory Wide Temperature RAM - 8 GB DDR3, up to 16 GB
Graphics Card On-board graphics Intel HD 4000 supported with VGA, DVI-D ports up to 1920x1080
Storage Wide Temperature 1x 2TB SSD, SATAIII 6Gb/s, with 2x 2.5" HDD removable tray

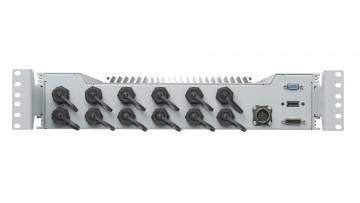

Ports Waterproof connectors for 6x USB 2.0 ports,
6x Giga Lan ports (not HUB),
1x COM port,
2x AUDIO out
Power Supply 150W AC input 110-220V or +10~36VDC input on request
Power input connector with MIL-DTL-26482 type
Optical Drive 1x DVD RW
Dimensions Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Weight 13,2 kg / 29.1 lbs
Cabinet Mounting With fixed rear extend holder up to 600mm (Std.),
With Jonathan rails up to 600mm (Options.)
Temperature (Operating) MIL-STD-810G, Method 501.5, Procedure II (0 ~ +60C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-20 ~+80C)
Vibration MIL-STD-810G, Method 514.6, Procedure I, Random General vibration, Functional
Shock MIL-STD-810G, Method 516.6, Procedure I, Saw tooth wave, 20G/11ms, Functional
Regulation CE, FCC, RoHS

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

View Comparable Systems
Product RMS 200 RMS 100 RMS 400
CPU Intel i7-3610QE 2x Intel Xeon E5-2640 V3, 2.6GHz, 20M cache, QPI up to 8 GT/s 2x Intel Xeon E5-2640 V, 2.6GHz, 20M cache, QPI up to 8 GT/s
Memory Wide Temperature RAM - 8 GB DDR3, up to 16 GB 64GB DDR4, 2133MHZ, and up to 128GB 64GB DDR4, 2133MHZ, and up to 128 GB
Storage Wide Temperature 1x 2TB SSD, SATAIII 6Gb/s, with 2x 2.5" HDD removable tray 2x 1TB SSD, SATA III 6Gb/s,
8x 2.5" HDD removable trays
2x 1TB SSD SATA III 6Gb/s with 2x 2.5" HDD removable trays,
8x 4TB HDD SATA III 6Gb/s up to 32TB with 8x 3.5" HDD removable trays for RAID 5
Ports Waterproof connectors for 6x USB 2.0 ports,
6x Giga Lan ports (not HUB),
1x COM port,
2x AUDIO out
3x USB 2.0 ports,
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out
4x USB 2.0 ports (2x on the front),
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out
Dimensions Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Weight 13,2 kg / 29.1 lbs 17.1 kg / 37.7 lbs 18 kg / 39.7 lbs
