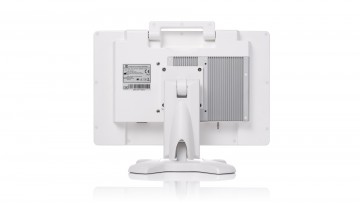

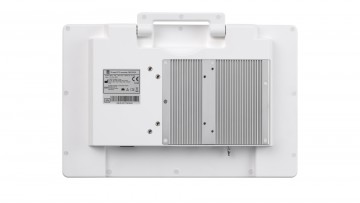

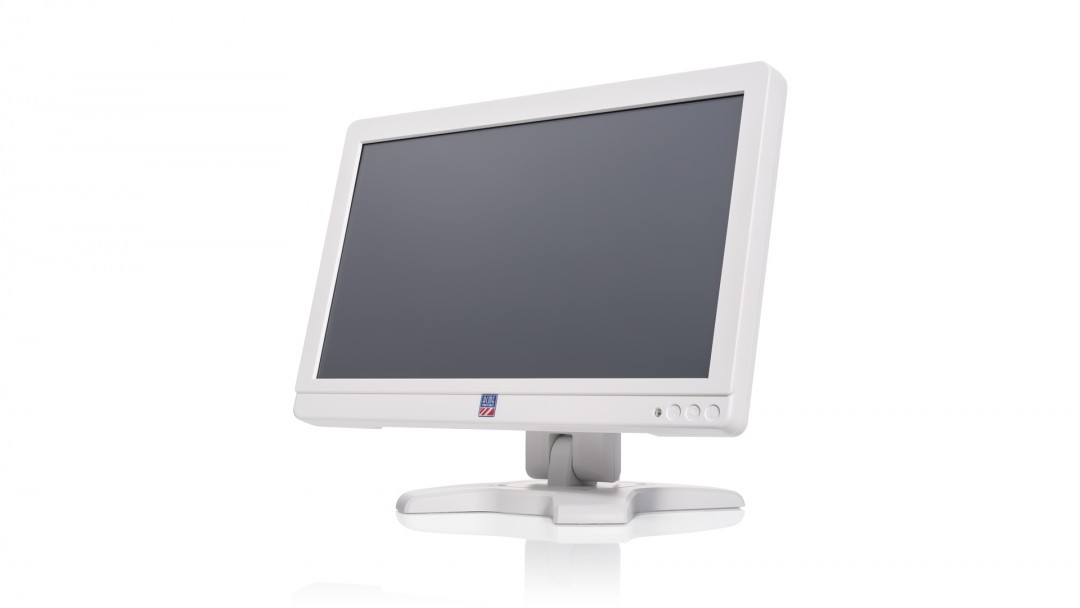

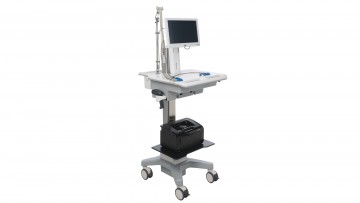

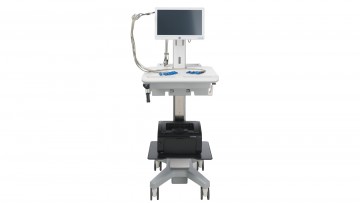

QED 2000

12 Lead ECG Recorder

WHAT IS THE QED 2000?

The QED2000 is a complete solution that allows for clinicians to deliver the utmost quality care to patients by providing an extremely accurate ECG signal in every instance and hospital setting. It is a tablet that assures fast and accurate 12-lead ECG acquisitions.

Streamlined Healthcare Process

Our QED2000 is equipped with user friendly touch screen capabilities on a high resolution display. This allows for a speedier workflow when performing diagnostic ECGs. It also provides one-touch accesses to aquire, print and save ECG reports to an external storage.

Excellent Tool in Aiding Ischemia Detection

The optional ischemia detector is a unique technology which analyzes frequency components of a 10-second, 12 lead resting ECG reading. This is a patented non-invasive alternative to traditional ischemia detection methods. Its sensitivity in detecting signs of ischemia can be a very effective tool for doctors in their diagnosis. This could also be a great asset in doctors’ offices, chest pain clinics, or emergency settings.

The QED2000 is cleared by CE (0112) in Europe for the product category: 12 Lead ECG Recorder (certificate): click here to view certificate.

Download Datasheet

Medical Features

  • The QED 2000 assures fast and accurate 12-lead ECG acquisitions. It features an advanced design and ergonomics to enable the operator to quickly and easily control the unit.
  • Interpretive Touch Screen 12 lead ECG recorder
    • Advanced Full HD touch screen
    • Provides accurate ECG almost instantaneously
    • Simple and intuitive data entry input / one-touch operation
    • Automatically transfers ECG data to electronic medical records
    • Supports external memory for recording ECG
    • Supports USB printers
  • ECG analysis program (Note: This is an optional upgrade)
    • Automatic 12 lead ECG interpretation program: The program is intended to provide an interpretation of the resting 12-lead ECG in all patient-care situations, whether it is a hospital setting or primary care setting. It is capable of diagnosing all commonly recognized ECG abnormalities, such as myocardial infarction (MI), including acute MI, ventricular hypertrophy, ST-T abnormalities, and common abnormalities of rhythm. Conduction defects and other abnormalities, such as prolonged QT interval, are also reported.
    • Non-invasive Ischemia Detector (NID): Patented, innovated technology that provides accurate screening of ischemia without risky and invasive procedures. For more information, please visit our dedicated page to NID.
Standard Measurement
Heart Rate
QRS Duration
PR Interval
QT Interval
ST Segment
Rhythms Interpretation
Normal Sinus Rhythm
RBBB, LBBB
Ventricular Tachycardia
1st, 2ndk degree AV Block
Sinus Bradycardia
Sinus Tachycardia
APC, VPC
Acute MI
LAH, RAH
QED 2000
ECG
Lead Standard 12 lead, synchronously acquisition
Input Impedance >10 MΩ
CMMR ≥100dB
Frequency Response 0.067 ~265Hz
Data Acquisition 16bit/3000Hz
Filter 40, 100, 150Hz
Sensitivity 5,10,20mm/mV
Pacing Detection 2 mV/ 0.1 ms
Platform
Processor Intel Atom E3845 1.9GHz, 4G RAM
Storage SD Card
Display 15.6 inch Full HD touch screen
USB Supports printer and keyboard
LAN 100Mbps
Power Supply DC 12V, 5A
Dimensions 15.2 (W) X 9.8 (D) X 1.9 (H) inches
Weight 5.9 lbs (with power adapter)
Environmental
Operating Temperature 15° to 40 °C
10% to 85% relative humidity
Storage Temperature 0° to 55 °C
10% to 90% relative humidity
Mounting VESA 75/100mm
Compliant Standard
EN 60601-1 2006/ AC 2010
EN 60601-1-2 2007/ AC 2010
EN 60601-2-27 2011

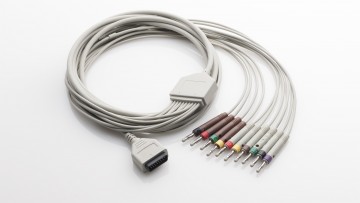

Accessories 10-lead patient cable,
Power adapter and power cord,
Operating manual
