DuraPAC


Compact, Rugged Portable with a 17.3" display and 4 full-length expansion slots. Configurable with the latest Intel® Core™ or AMD processor.

Download Datasheet

DuraPAC Main
Video Preview

Compact Rugged Portable

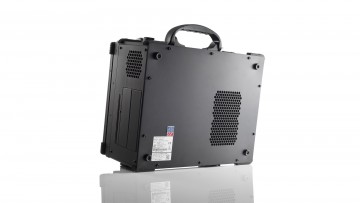

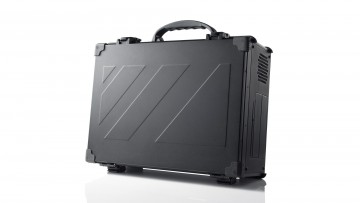

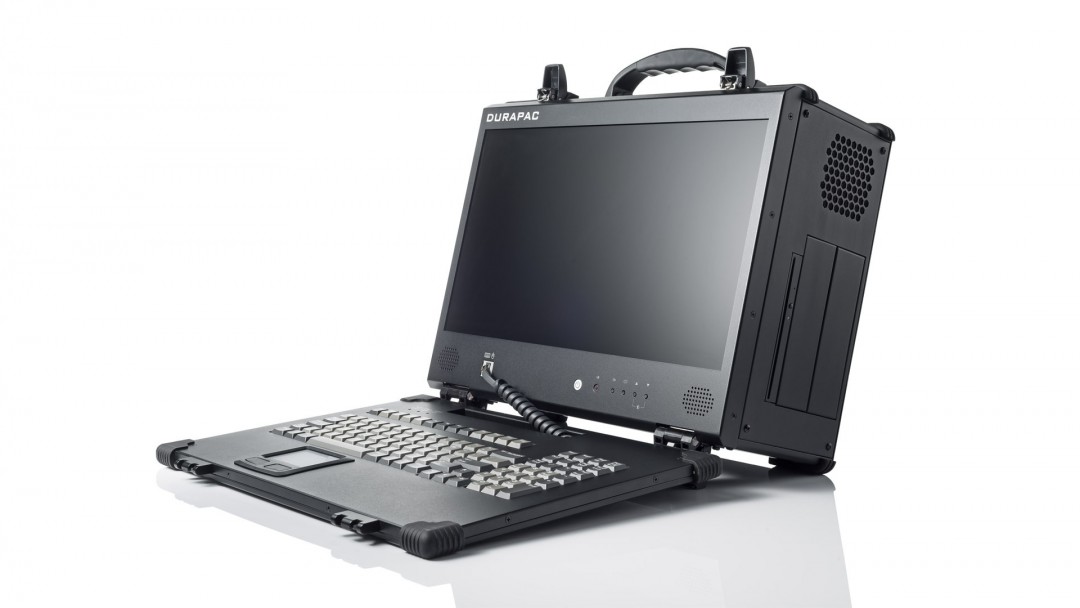

The DuraPAC product is a robust portable computer built using all aluminum sheet metal to provide tough, go-anywhere unit suitable for tough environments and mobile applications. With the 17.3", HD LCD display and 4-expansion slots design, the DuraPAC can easily fulfill the requirements for digital media related applications in the broadcasting market. The DuraPAC can also be configured with many special add-on cards tailored to your specific unique applications.

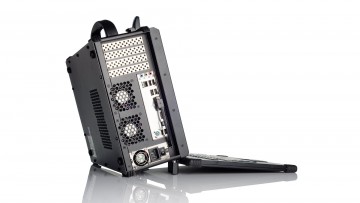

Every unit comes equipped with cooling fans and easy access to its expansion slots for immediate system upgrade or maintenance. With its elegant design and rugged construction, the DuraPAC is the most durable and versatile portable platform for your applications.

Broadcasting Market

Because of its portability and versatility, the DuraPAC is an extremely popular system for the digital media and broadcasting industry.

As a result, we have a dedicated product based on the DuraPAC called the Acme GO. You can learn more about the Acme GO on our dedicated media site.

View Acme GO

Special function keyboard

Special Keyboard Function Keys

Our portable workstations have a newly designed keyboard with backlit keys and special function keys for specific functions.

  • Fn + F1 = Lower keyboard LED brightness
  • Fn + F2 = Increase keyboard LED brightness
  • Fn + F3 = Search
  • Fn + F4 = Calculator
  • Fn + F5 = Toggle on/off touchpad
  • Fn + F6 = My computer
  • Fn + F7 = Previous track
  • Fn + F8 = Pause/play
  • Fn + F9 = Next track
  • Fn + F10 = Mute
  • Fn + F11 = Volume down
  • Fn + F12 = Volume up
  • Fn + Esc = Internet Explorer - Home page of browser

Technical Specifications

Product DuraPAC
Display 17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
CPU Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7
Memory Up to 768GB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 4
Storage Up to 36TB (Removable Option Available)
Power Supply 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply
Dimensions Height: 13.62" (346mm)
Width: 16.50" (410mm)
Depth: 7.25" (184mm)
Weight ~23 lbs (10.4kg)
Touch Option Touchscreen Optional
WiFi / Bluetooth WiFi and Bluetooth Optional
RAID RAID 0/1/5/10
Keyboard & Mouse 105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case Includes Padded Rolling Transit Case
Optional: Hardened Case Available
Quality ISO 9001
Customization Military connectors, custom I/O, and more.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product DuraPAC DuraPAC Lite FlexPAC
Display 17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
CPU Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory Up to 768GB DDR4 RAM Up to 64 GB DDR4 RAM Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 4 Up to 2 Up to 7
Storage Up to 36TB (Removable Option Available) Storage Drives, Up to 15TB (Removable Option Available) Up to 48TB (Removable Option Available)
Power Supply 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply 400W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
Optional: 500W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply
680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply
Dimensions Height: 13.62" (346mm)
Width: 16.50" (410mm)
Depth: 7.25" (184mm)
Width: 16.41" (418.8mm)
Height: 12.40" (315mm)
Depth: 4.39" (111.5mm)
Height: 17.06" (433mm)
Width: 13.67" (347mm)
Depth: 9.02" (229mm)
Weight ~23 lbs (10.4kg) ~16.5 lbs (7.5kg) ~30 lbs (13.6kg)
