FlexPAC


Compact, High Performance, Rugged Portable with a 17.3" display and 7 full-length expansion slots. Configurable with the latest Intel® Core™ or AMD processor.

Download Datasheet

FlexPAC Main
Video Preview

High Performance Rugged Portable

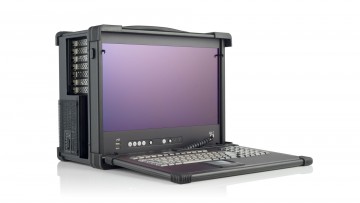

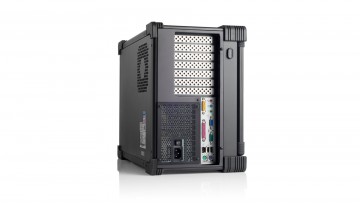

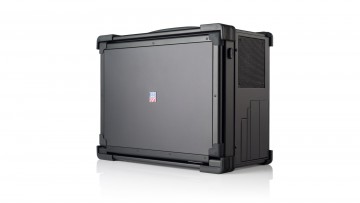

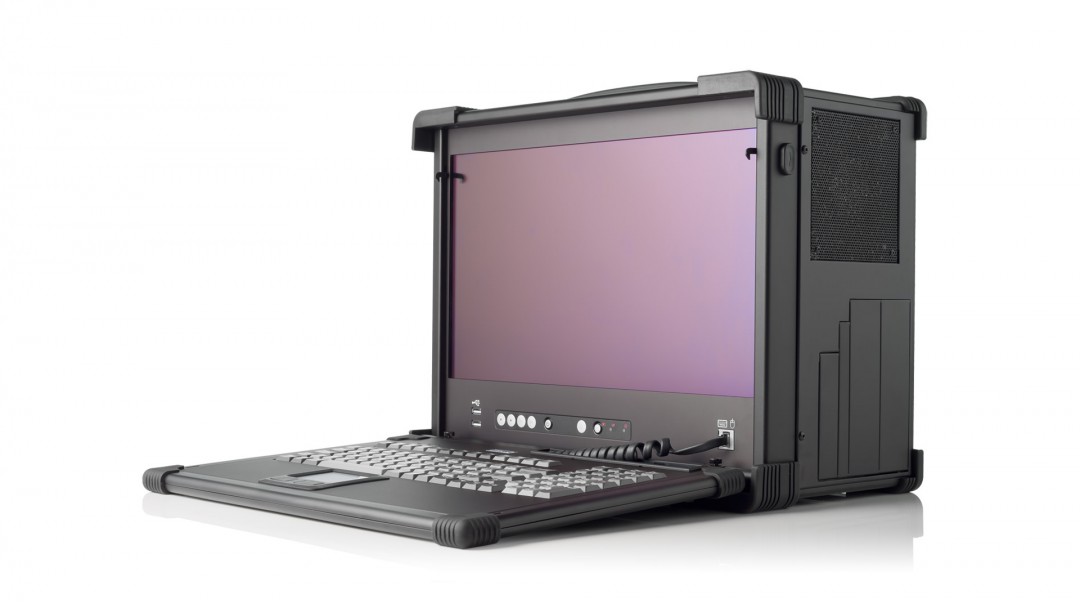

The FlexPAC is a robust lunchbox computer built using heavy duty metal to provide tough, go-anywhere unit ideally suitable for harsh/severe environments and mission critical applications. With passive backplane board configurations to choose from the available full length expansion slots of the FlexPAC can be freely configured with other uniquely designed expansions cards for most applications.

Also desiged for harsh environment operations, the LCD screen of the FlexPAC is guarded with a specially treated anti-glare tempered glass for added protection. Every FlexPAC comes equipped with dual system cooling side fans and easy access to its expansion ports for immediate system upgrade or maintenance. Functional practicality combined with the simple and polished design, the FlexPAC with its extra-rugged construction to sustain bumps and impacted blows is the most cost-effective, durable and efficient portable solution for your mission critical applications.

Special function keyboard

Special Keyboard Function Keys

Our portable workstations have a newly designed keyboard with backlit keys and special function keys for specific functions.

  • Fn + F1 = Lower keyboard LED brightness
  • Fn + F2 = Increase keyboard LED brightness
  • Fn + F3 = Search
  • Fn + F4 = Calculator
  • Fn + F5 = Toggle on/off touchpad
  • Fn + F6 = My computer
  • Fn + F7 = Previous track
  • Fn + F8 = Pause/play
  • Fn + F9 = Next track
  • Fn + F10 = Mute
  • Fn + F11 = Volume down
  • Fn + F12 = Volume up
  • Fn + Esc = Internet Explorer - Home page of browser

Technical Specifications

Product FlexPAC
Display 17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
CPU Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 7
Storage Up to 48TB (Removable Option Available)
Power Supply 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply
Dimensions Height: 17.06" (433mm)
Width: 13.67" (347mm)
Depth: 9.02" (229mm)
Weight ~30 lbs (13.6kg)
Touch Option Touchscreen Optional
WiFi / Bluetooth WiFi and Bluetooth Optional
RAID RAID 0/1/5/10
Keyboard & Mouse 105-key Keyboard With Integrated Touchpad. Available in a variety of languages.
Transit Case Includes Padded Rolling Transit Case
Optional :Hardened Case Available
Quality ISO 9001
Customization Military connectors, custom I/O, and more.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product FlexPAC DuraPAC MegaPAC L1
Display 17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
17.3" FHD 1920x1080 - 300 nits

Upgradable options:
1000 nits,
UHD 3840x2160, 60Hz Display,
2K, 144Hz displays,
projected capacitive or resistive touchscreen option
23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
CPU Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™ Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7 Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™
Memory Up to 1TB DDR4 RAM Up to 768GB DDR4 RAM Up to 1TB DDR4 RAM
Graphics Card Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Integrated HD graphic controller
or application-specific graphic controller
Expansion Slots Up to 7 Up to 4 Up to 7
Storage Up to 48TB (Removable Option Available) Up to 36TB (Removable Option Available) Up to 150TB (Removable Option Available)
Power Supply 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply 680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply
Dimensions Height: 17.06" (433mm)
Width: 13.67" (347mm)
Depth: 9.02" (229mm)
Height: 13.62" (346mm)
Width: 16.50" (410mm)
Depth: 7.25" (184mm)
Height: 15.12" (384mm)
Width: 23.11" (587mm)
Depth: 9.02" (229mm)
Weight ~30 lbs (13.6kg) ~23 lbs (10.4kg) ~40 lbs (18kg)
