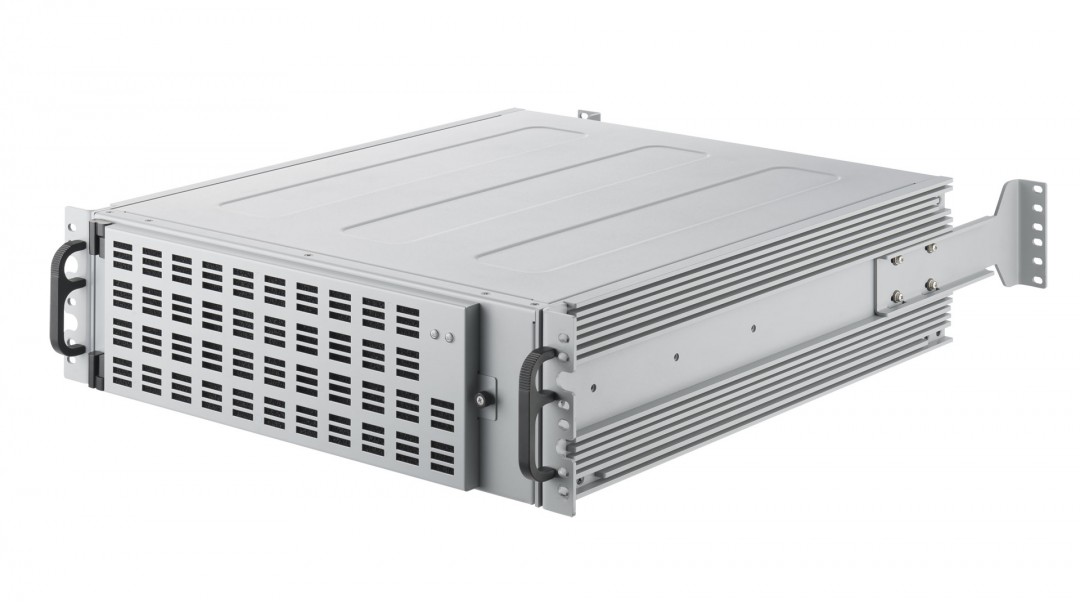

RMS 400


Designed to be both compact, versatile, and powerful, the RMS 400 is a 3U rugged rackmount server with massive storage for extreme versatility. This unit comes with 25x 2.5” removable trays. Designed to meet MIL-STD-810G requirements, this unit can perform under the harshest conditions.

Download Datasheet

RMS 400 Main
Video Preview

Rugged Rackmount Server With Massive Storage

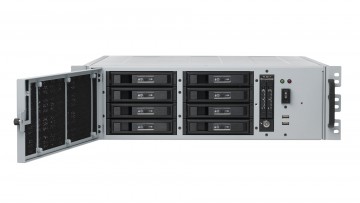

Designed to be both compact, versatile, and powerful, the RMS 400 is a 3U rugged rackmount server with massive storage for extreme versatility. This unit comes with 8 3.5" removable trays and 2 2.5" removable trays. Designed to meet MIL-STD-810G requirements, this unit can perform under the harshest conditions.

Technical Specifications

Product RMS 400
CPU Dual Intel® Xeon® Gold 6132 Processor - 14 Cores, 28 Threads, 2.6GHz base freq, 3.7GHz Max Freq, 19.25MB L2 Cache, 140W
Memory 256GB DDR4-2933 Memory
Graphics Card On-board graphics with VGA up to 1920x1080, with 64GB shared memory
OS Drive 2TB 2.5" SSD
Storage 24 Removable drive bays for 2.5" devices
Expansion Slots 1x PCIe 3.0 x16,
3x PCIe 3.0 x8,
1x PCIe 3.0 x4,
1x PCIe 2.0 x4

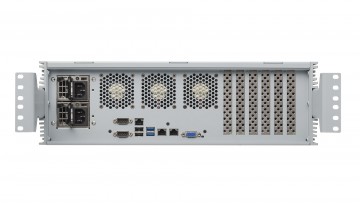

Ports 4x USB 2.0 ports (2x on the front),
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out
Power Supply 700W Dual AC redundant 110~220,
AC/DC input available on request
Dimensions Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Weight 39.7 lbs (18kg)
Cabinet Mounting With fixed rear extend holder up to 600mm (Std.),
With Jonathan rails up to 600mm (Options.)
Temperature (Operating) MIL-STD-810G, Method 501.5, Procedure II (0 ~ +60C),
(Storage) MIL-STD-810G, Method 501.5, Procedure I (-20 ~+80C)
Vibration MIL-STD-810G, Method 514.6, Procedure I, Random General vibration, Functional
Shock MIL-STD-810G, Method 516.6, Procedure I, Saw tooth wave, 20G/11ms, Functional
Regulation CE, FCC
Customization Military connectors, custom I/O, and more.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product RMS 400 RMS 100 RMS 200
CPU Dual Intel® Xeon® Gold 6132 Processor - 14 Cores, 28 Threads, 2.6GHz base freq, 3.7GHz Max Freq, 19.25MB L2 Cache, 140W Dual Intel® Xeon® Silver 4116T Processors - 12 Cores, 24 Threads, 2.1GHz base freq, 3.0 GHz Max Freq, 16.5MB L2 Cache, 85W Dual Intel® Xeon® Gold 6132 Processor - 14 Cores, 28 Threads, 2.6GHz base freq, 3.7GHz Max Freq, 19.25MB L2 Cache, 140W
Memory 256GB DDR4-2933 Memory 96GB 128GB
OS Drive 2TB 2.5" SSD 2TB 2.5" SSD 2TB 2.5" SSD
Storage 24 Removable drive bays for 2.5" devices 16 tray removable bays 16 tray removable bays
Expansion Slots 1x PCIe 3.0 x16,
3x PCIe 3.0 x8,
1x PCIe 3.0 x4,
1x PCIe 2.0 x4
1x PCIe 3.0 x16,
3x PCIe 3.0 x8
1x PCIe 3.0 x4,
1x PCIe 2.0 x4
N/A
Ports 4x USB 2.0 ports (2x on the front),
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out
3x USB 2.0 ports,
2x USB 3.0 ports,
1x COM port,
2x Giga Lan ports,
2x AUDIO out
Waterproof connectors for 6x USB 2.0 ports,
6x Giga Lan ports (not HUB),
1x COM port,
2x AUDIO out
Power Supply 700W Dual AC redundant 110~220,
AC/DC input available on request
800W redundant power supply 680W power supply
Dimensions Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Mechanism meets EIA/ECA-310 - 19" Rackmount 2U,
Depth: 500mm
Weight 39.7 lbs (18kg) 37.7 lbs (17kg) 29.1 lbs (13.2kg)
